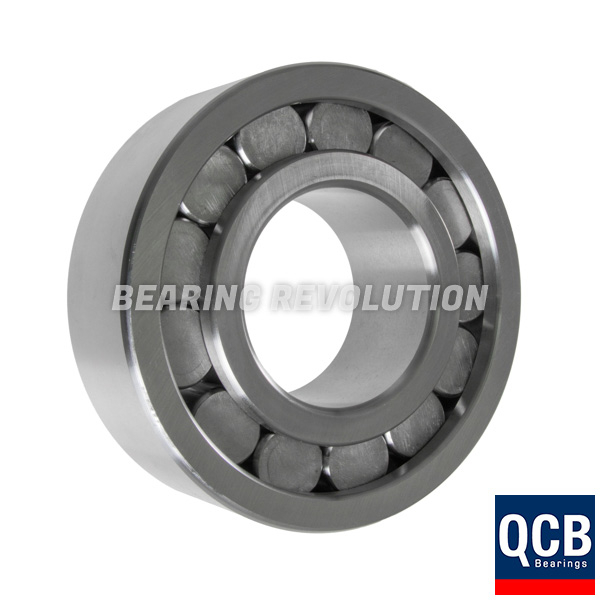

SL 19 2328 C3, FULL COMPLEMENT CYLINDRICAL ROLLER BEARING WITH A 140MM BORE - SELECT RANGE
Single row semi-locating type cylindrical roller bearing with a full complement of rollers from our Select range. Supports radial forces as well as limited axial forces in one direction. Allows the outer and inner rings to be displaced in one axial direction with respect to each other. 140mm ID, 300mm OD, 102mm width.
Also known as NJG 2328 VH C3
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£2,848.58 (£3,418.30 inc VAT)
- 5 - 9£2,706.15 (£3,247.38 inc VAT)
- 10 +£2,563.72 (£3,076.46 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SL 19 2328 C3, Full Complement Cylindrical Roller Bearing with a 140mm bore - Select Range | |
| Reference | SL 19 2328 C3 |
| Brand | Select |
| Inside Diameter | 140mm |
| Outside Diameter | 300mm |
| Width | 102mm |
| Clearance | C3 |
| Weight (KG) | 35.5 |

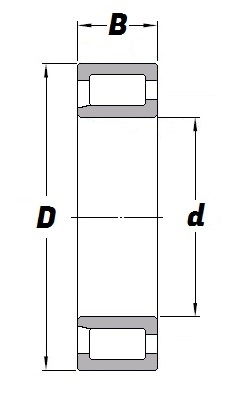

Schematic for SL 19 2328 C3, Full Complement Cylindrical Roller Bearing with a 140mm bore - Select Range | |
| B | 102mm |
| d | 140mm |
| D | 300mm |
