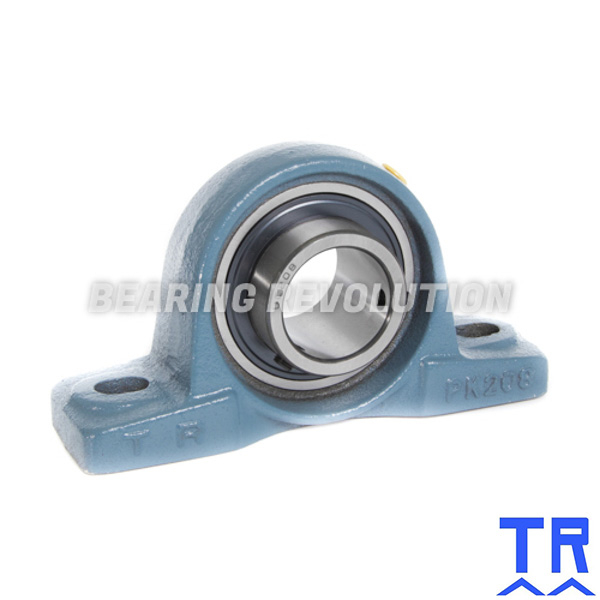

SL 1.1/2 ( UCPK 208 24 ) - PILLOW BLOCK HOUSING UNIT WITH A 1.1/2 INCH BORE - TR BRAND
Cast Iron Pillow Block Housing Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£50.52 (£60.62 inc VAT)
- 5 - 9£48.00 (£57.60 inc VAT)
- 10 +£45.47 (£54.56 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SL 1.1/2 ( UCPK 208 24 ) - Pillow Block Housing Unit with a 1.1/2 inch bore - TR Brand | |
| Reference | SL 1.1/2 |
| Brand | TR |
| Inside Diameter | 1.1/2" |
| Bolt | M12 |
| Weight (KG) | 2.21 |

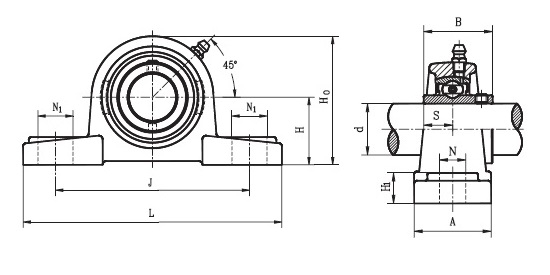

Schematic for SL 1.1/2 ( UCPK 208 24 ) - Pillow Block Housing Unit with a 1.1/2 inch bore - TR Brand | |
| A | 52mm |
| B | 49.2mm |
| H | 49.2mm |
| H0 | 98mm |
| H1 | 19mm |
| J | 140mm |
| KG | 2.21 |
| L | 181mm |
| N | 14mm |
| N1 | 19mm |
| S | 19mm |
