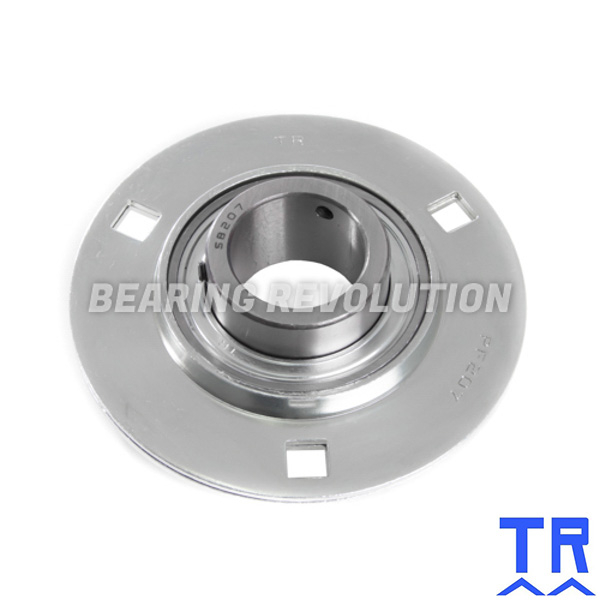

SLFE 1.1/8 A ( SBPF 206 18 ) - ROUND HOUSING FLANGE UNIT WITH A 1.1/8 INCH BORE - TR BRAND
Pressed Steel Round Housing Flange Unit complete with flat back bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£18.50 (£22.20 inc VAT)
- 5 - 9£17.57 (£21.08 inc VAT)
- 10 +£16.64 (£19.97 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFE 1.1/8 A ( SBPF 206 18 ) - Round Housing Flange Unit with a 1.1/8 inch bore - TR Brand | |
| Reference | SLFE 1.1/8 A |
| Brand | TR |
| Inside Diameter | 1.1/8" |
| Bolt | M10 |
| Bolt1 | .3/8 |
| Weight (KG) | 0.55 |

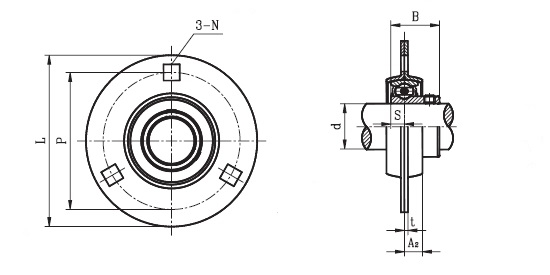

Schematic for SLFE 1.1/8 A ( SBPF 206 18 ) - Round Housing Flange Unit with a 1.1/8 inch bore - TR Brand | |
| A2 | 9mm |
| B | 30mm |
| KG | 0.55 |
| L | 113mm |
| N | 10.5mm |
| P | 90mm |
| S | 8mm |
| t | 2.5mm |
