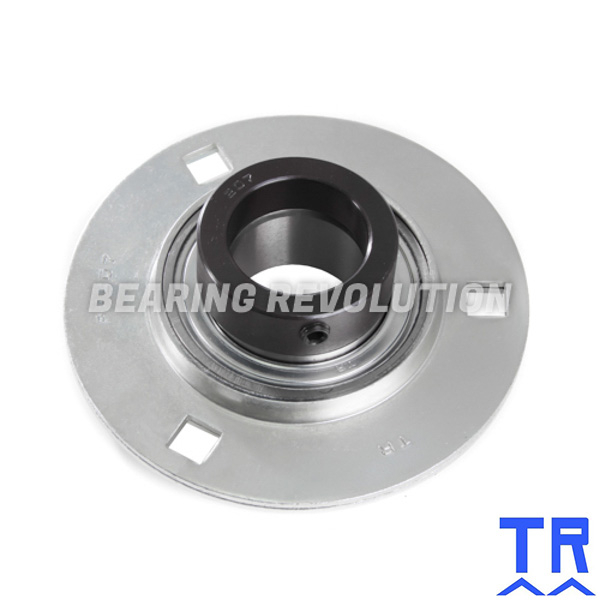

SLFE 1.1/8 EC ( SAPF 206 18 ) - ROUND HOUSING FLANGE UNIT WITH A 1.1/8 INCH BORE - TR BRAND
Pressed Steel Round Housing Flange Unit complete with flat back bearing insert and eccentric collar lock from our TR Range.
- UnitsPer unit
- 1 - 4£19.58 (£23.50 inc VAT)
- 5 - 9£18.60 (£22.32 inc VAT)
- 10 +£17.62 (£21.14 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFE 1.1/8 EC ( SAPF 206 18 ) - Round Housing Flange Unit with a 1.1/8 inch bore - TR Brand | |
| Reference | SLFE 1.1/8 EC |
| Brand | TR |
| Inside Diameter | 1.1/8" |
| Bolt | M10 |
| Bolt1 | .3/8 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.6 |

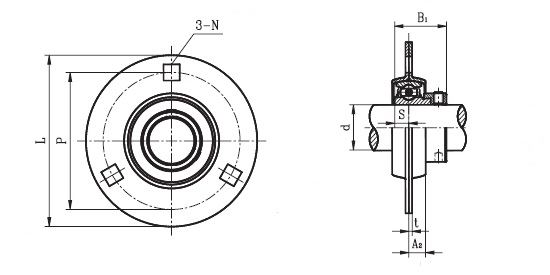

Schematic for SLFE 1.1/8 EC ( SAPF 206 18 ) - Round Housing Flange Unit with a 1.1/8 inch bore - TR Brand | |
| A2 | 9mm |
| B | 35.7mm |
| KG | 0.6 |
| L | 113mm |
| N | 10.5mm |
| P | 90mm |
| S | 9mm |
| t | 2.5mm |
