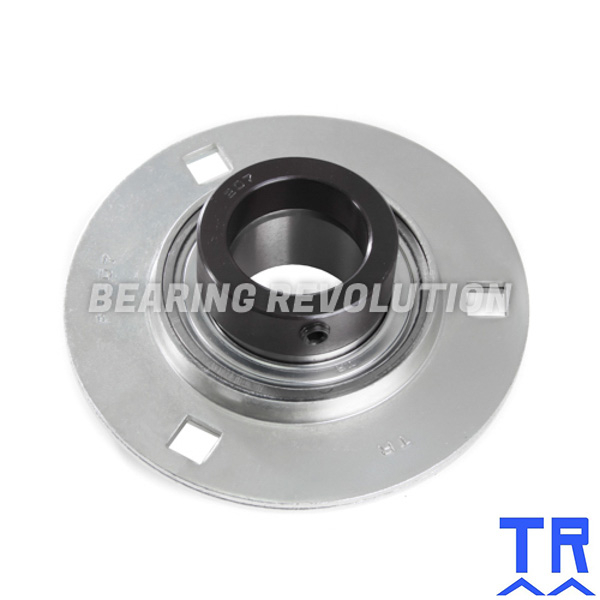

SLFE 1.3/8 EC ( SAPF 207 22 ) - ROUND HOUSING FLANGE UNIT WITH A 1.3/8 INCH BORE - TR BRAND
Pressed Steel Round Housing Flange Unit complete with flat back bearing insert and eccentric collar lock from our TR Range.
- UnitsPer unit
- 1 - 4£24.15 (£28.98 inc VAT)
- 5 - 9£22.94 (£27.53 inc VAT)
- 10 +£21.74 (£26.09 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFE 1.3/8 EC ( SAPF 207 22 ) - Round Housing Flange Unit with a 1.3/8 inch bore - TR Brand | |
| Reference | SLFE 1.3/8 EC |
| Brand | TR |
| Inside Diameter | 1.3/8" |
| Bolt | M10 |
| Bolt1 | .3/8 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.79 |

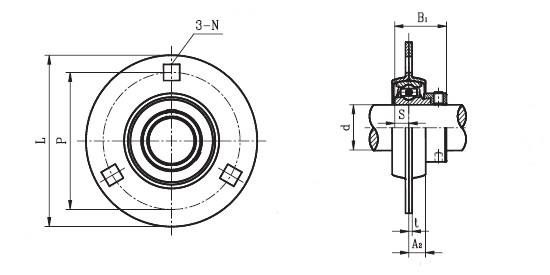

Schematic for SLFE 1.3/8 EC ( SAPF 207 22 ) - Round Housing Flange Unit with a 1.3/8 inch bore - TR Brand | |
| A2 | 10mm |
| B | 38.9mm |
| KG | 0.79 |
| L | 122mm |
| N | 10.5mm |
| P | 100mm |
| S | 9.5mm |
| t | 2.5mm |
