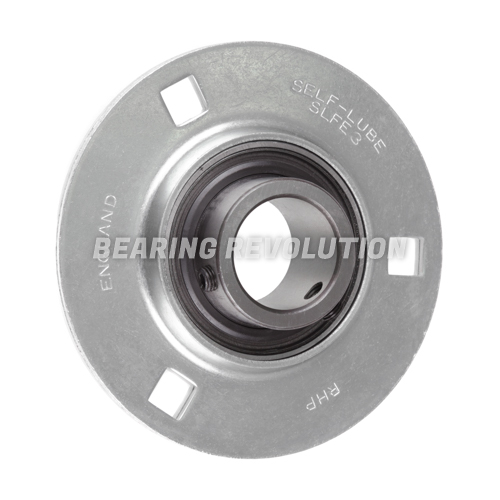

SLFE 20 A, 'PREMIUM' ROUND HOUSING FLANGE UNIT WITH A 20MM BORE.
Pressed Steel and Zinc Plated Three Bolt Round Housing Flange Unit complete with flat back bearing insert from our Premium Range. Also known as SBPF 204.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£28.95 (£34.74 inc VAT)
- 5 +£27.49 (£32.99 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFE 20 A, 'Premium' Round Housing Flange Unit with a 20mm bore. | |
| Reference | SLFE 20 A |
| Brand | Premium |
| Inside Diameter | 20mm |
| Weight (KG) | 0.3 |

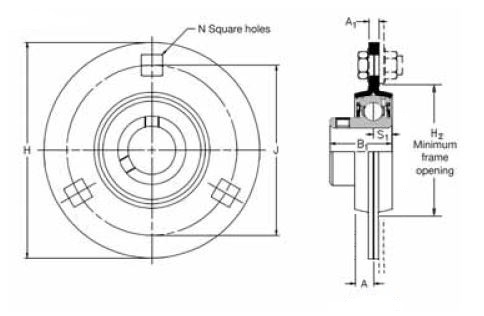

Schematic for SLFE 20 A, 'Premium' Round Housing Flange Unit with a 20mm bore. | |
| A | 7.7mm |
| A1 | 4mm |
| B1 | 25.8mm |
| H | 90.5mm |
| H2 | 55mm |
| J | 71.5mm |
| KG | 0.3 |
| N | 8.7mm |
| s1 | 7.53mm |
