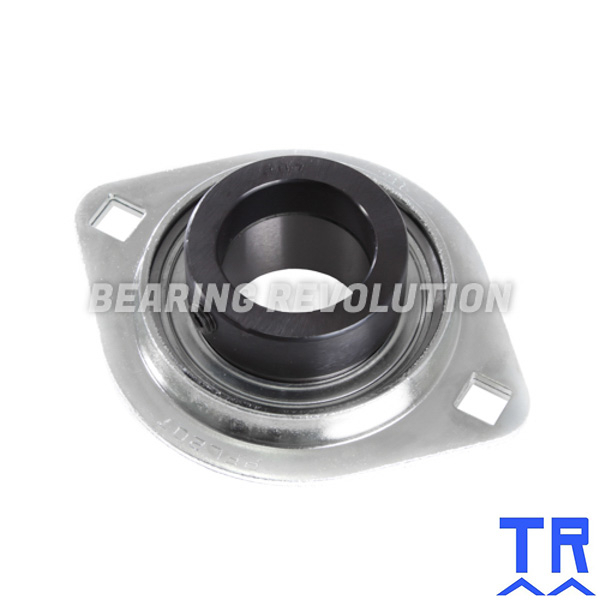

SLFL 1 EC ( SAPFL 205 16 ) - OVAL FLANGE UNIT WITH A 1 INCH BORE - TR BRAND
Pressed Steel Two Bolt Oval Flange Unit complete with flat back bearing insert and eccentric collar lock from our TR Range.
- UnitsPer unit
- 1 - 4£16.42 (£19.70 inc VAT)
- 5 - 9£15.59 (£18.71 inc VAT)
- 10 +£14.77 (£17.72 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFL 1 EC ( SAPFL 205 16 ) - Oval Flange Unit with a 1 inch bore - TR Brand | |
| Reference | SLFL 1 EC |
| Brand | TR |
| Inside Diameter | 1" |
| Bolt | M8 |
| Bolt1 | .5/16 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.29 |

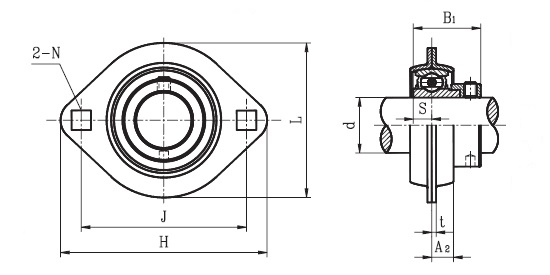

Schematic for SLFL 1 EC ( SAPFL 205 16 ) - Oval Flange Unit with a 1 inch bore - TR Brand | |
| A2 | 9mm |
| B | 30.9mm |
| H | 95mm |
| J | 76mm |
| KG | 0.29 |
| L | 71mm |
| N | 9mm |
| S | 7.5mm |
| t | 2mm |
