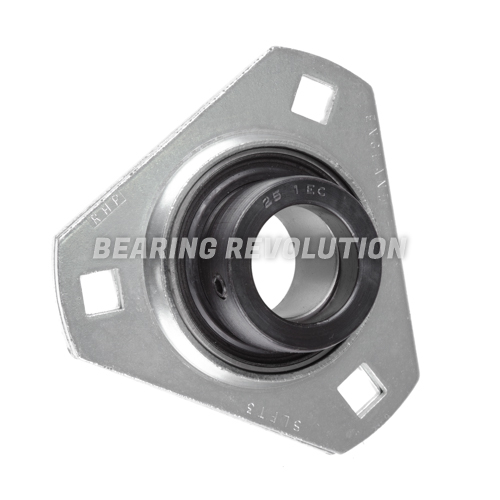

SLFT 1.1/4 EC, 'PREMIUM' TRIANGULAR FLANGE UNIT WITH A 1.1/4 INCH BORE.
Pressed Steel Three Bolt Triangular Flange Unit complete with a flat back bearing insert and eccentric collar lock from our Premium Range. Also known as .
Also known as SAPFT 207 20
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£52.78 (£63.34 inc VAT)
- 5 +£50.16 (£60.19 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFT 1.1/4 EC, 'Premium' Triangular Flange Unit with a 1.1/4 inch bore. | |
| Reference | SLFT 1.1/4 EC |
| Brand | Premium |
| Inside Diameter | 1.1/4" |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.5 |

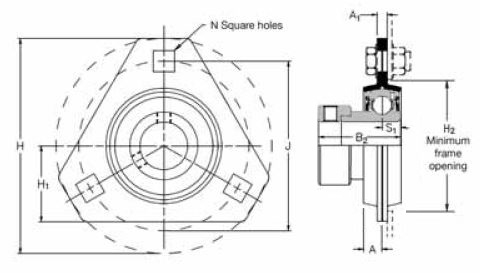

Schematic for SLFT 1.1/4 EC, 'Premium' Triangular Flange Unit with a 1.1/4 inch bore. | |
| A | 9mm |
| A1 | 5mm |
| B2 | 35.68mm |
| H | 112.7mm |
| H1 | 40.2mm |
| H2 | 71mm |
| J | 90.5mm |
| KG | 0.5 |
| N | 10.5mm |
| s1 | 9.04mm |
