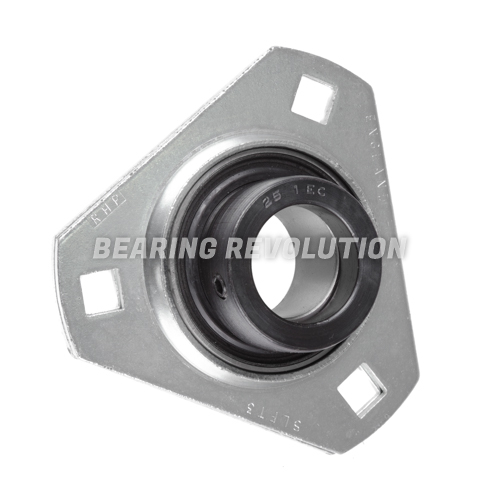

SLFT 25, 'PREMIUM' TRIANGULAR FLANGE UNIT WITH A 25MM BORE.
Pressed Steel Three Bolt Triangular Flange Unit complete with a full width bearing insert from our Premium Range. Also known as .
Also known as UCPFT 205
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£32.90 (£39.48 inc VAT)
- 5 +£31.26 (£37.51 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SLFT 25, 'Premium' Triangular Flange Unit with a 25mm bore. | |
| Reference | SLFT 25 |
| Brand | Premium |
| Inside Diameter | 25mm |
| Weight (KG) | 0.3 |

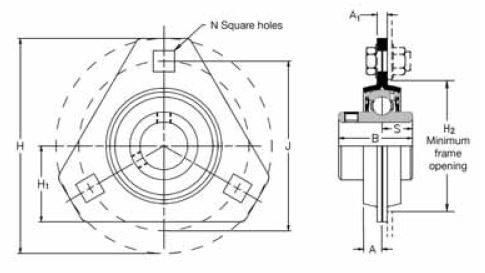

Schematic for SLFT 25, 'Premium' Triangular Flange Unit with a 25mm bore. | |
| A | 8.7mm |
| A1 | 4mm |
| B | 34.11mm |
| H | 95.2mm |
| H1 | 34.2mm |
| H2 | 60mm |
| J | 76mm |
| KG | 0.3 |
| N | 8.7mm |
| s | 14.32mm |
