SN 505, SPLIT PILLOW BLOCK HOUSING - SELECT RANGE
SN series two bolt split pillow block housing suitable for self aligning ball bearings and spherical roller bearings and adaptor sleeve mounting from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£35.11 (£42.13 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SN 505, Split Pillow Block Housing - Select Range | |
| Reference | SN 505 |
| Brand | Select |

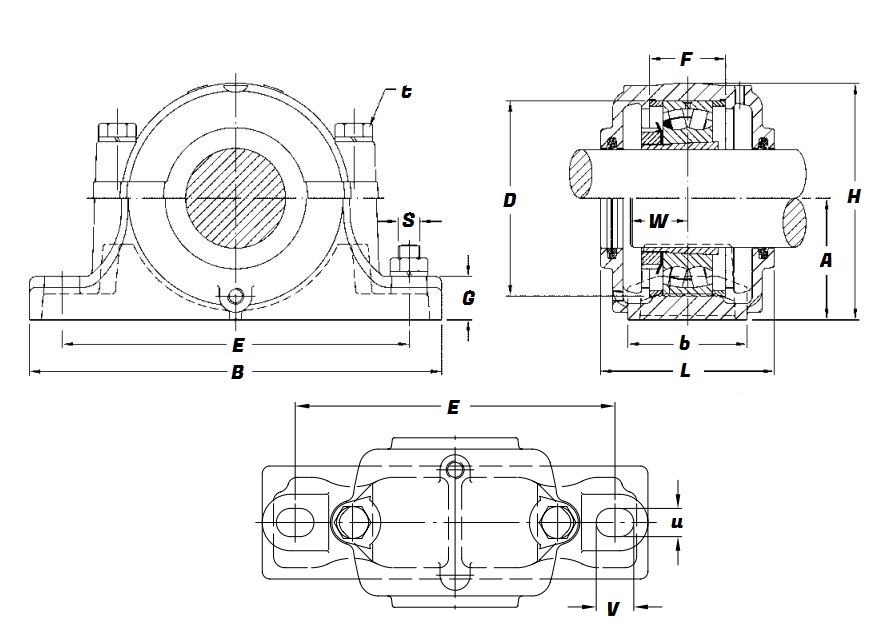

Schematic for SN 505, Split Pillow Block Housing - Select Range | |
| A | 40mm |
| b | 46mm |
| B | 165mm |
| D | 52mm |
| E | 130mm |
| F | 25mm |
| G | 22mm |
| H | 75mm |
| L | 67mm |
| S | M12 |
| t | M8 |
| U | 15mm |
| v | 20mm |
| W | 22mm |
