SPZ 150 - 4 T/L, TAPERLOCK V-BELT PULLEY
SPZ section taperlock v-belt pulley with 4 grooves and 150mm pitch circle diameter, will take taper bush size 2517 up to a maximum 60mm bore.
Also known as ZT01504
- UnitsPer unit
- 1 - 4£35.24 (£42.29 inc VAT)
- 5 - 9£33.47 (£40.16 inc VAT)
- 10 +£31.71 (£38.05 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SPZ 150 - 4 T/L, Taperlock V-Belt Pulley | |
| Reference | SPZ 150 - 4 T/L |
| Brand | BR |
| Bush | 2517 |
| Grooves | 4 |
| Pitch Circle Diameter (Dp) | 150mm |
| Type | SPZ |
| Weight (KG) | 3.8 |

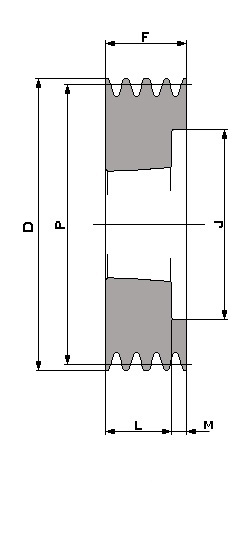

Schematic for SPZ 150 - 4 T/L, Taperlock V-Belt Pulley | |
| D | 154mm |
| F | 52mm |
| J | 121mm |
| L | 45mm |
| M | 7mm |
