SPZ 160 - 4 T/L, TAPERLOCK V-BELT PULLEY
SPZ section taperlock v-belt pulley with 4 grooves and 160mm pitch circle diameter, will take taper bush size 2517 up to a maximum 60mm bore.
Also known as ZT01604
- UnitsPer unit
- 1 - 4£41.12 (£49.34 inc VAT)
- 5 - 9£39.06 (£46.87 inc VAT)
- 10 +£37.00 (£44.40 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SPZ 160 - 4 T/L, Taperlock V-Belt Pulley | |
| Reference | SPZ 160 - 4 T/L |
| Brand | BR |
| Bush | 2517 |
| Grooves | 4 |
| Pitch Circle Diameter (Dp) | 160mm |
| Type | SPZ |
| Weight (KG) | 4.6 |

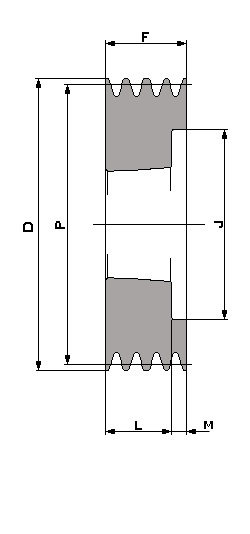

Schematic for SPZ 160 - 4 T/L, Taperlock V-Belt Pulley | |
| D | 164mm |
| F | 52mm |
| J | 131mm |
| L | 45mm |
| M | 7mm |
