SPZ 180 - 3 T/L, TAPERLOCK V-BELT PULLEY
SPZ section taperlock v-belt pulley with 3 grooves and 180mm pitch circle diameter, will take taper bush size 2012 up to a maximum 50mm bore.
Also known as ZT01803
- UnitsPer unit
- 1 - 4£35.57 (£42.68 inc VAT)
- 5 - 9£33.80 (£40.56 inc VAT)
- 10 +£32.02 (£38.42 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SPZ 180 - 3 T/L, Taperlock V-Belt Pulley | |
| Reference | SPZ 180 - 3 T/L |
| Brand | BR |
| Bush | 2012 |
| Grooves | 3 |
| Pitch Circle Diameter (Dp) | 180mm |
| Type | SPZ |
| Weight (KG) | 3.2 |

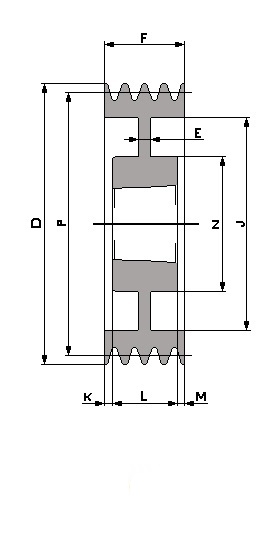

Schematic for SPZ 180 - 3 T/L, Taperlock V-Belt Pulley | |
| D | 184mm |
| E | 7mm |
| F | 40mm |
| J | 151mm |
| L | 32mm |
| M | 8mm |
| N | 106mm |
