SPZ 250 - 1 T/L, TAPERLOCK V-BELT PULLEY
SPZ section taperlock v-belt pulley with 1 grooves and 250mm pitch circle diameter, will take taper bush size 2012 up to a maximum 50mm bore.
Also known as ZT02501
- UnitsPer unit
- 1 - 4£35.14 (£42.17 inc VAT)
- 5 - 9£33.38 (£40.06 inc VAT)
- 10 +£31.63 (£37.96 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SPZ 250 - 1 T/L, Taperlock V-Belt Pulley | |
| Reference | SPZ 250 - 1 T/L |
| Brand | BR |
| Bush | 2012 |
| Grooves | 1 |
| Pitch Circle Diameter (Dp) | 250mm |
| Type | SPZ |
| Weight (KG) | 3.3 |

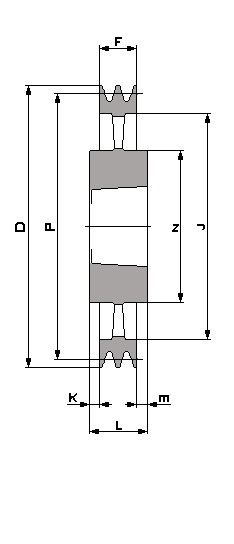

Schematic for SPZ 250 - 1 T/L, Taperlock V-Belt Pulley | |
| D | 254mm |
| F | 16mm |
| J | 221mm |
| K | 8mm |
| L | 32mm |
| M | 8mm |
| N | 112mm |
