SPZ 400 - 2 T/L, TAPERLOCK V-BELT PULLEY
SPZ section taperlock v-belt pulley with 2 grooves and 400mm pitch circle diameter, will take taper bush size 2517 up to a maximum 60mm bore.
Also known as ZT04002
- UnitsPer unit
- 1 - 4£71.99 (£86.39 inc VAT)
- 5 - 9£68.38 (£82.06 inc VAT)
- 10 +£64.78 (£77.74 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SPZ 400 - 2 T/L, Taperlock V-Belt Pulley | |
| Reference | SPZ 400 - 2 T/L |
| Brand | BR |
| Bush | 2517 |
| Grooves | 2 |
| Pitch Circle Diameter (Dp) | 400mm |
| Type | SPZ |
| Weight (KG) | 8.8 |

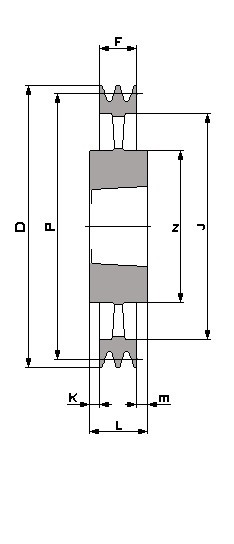

Schematic for SPZ 400 - 2 T/L, Taperlock V-Belt Pulley | |
| D | 404mm |
| F | 28mm |
| J | 371mm |
| K | 8.5mm |
| L | 45mm |
| M | 8.5mm |
| N | 124mm |
