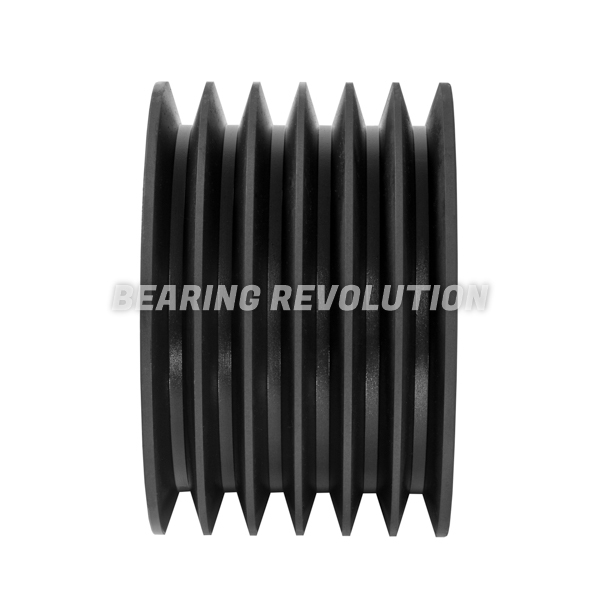

SPZ 450 - 6 T/L, TAPERLOCK V-BELT PULLEY
SPZ section taperlock v-belt pulley with 6 grooves and 450mm pitch circle diameter, will take taper bush size 3030 up to a maximum 75mm bore.
- UnitsPer unit
- 1 - 4£189.59 (£227.51 inc VAT)
- 5 - 9£180.11 (£216.13 inc VAT)
- 10 +£170.63 (£204.76 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SPZ 450 - 6 T/L, Taperlock V-Belt Pulley | |
| Reference | SPZ 450 - 6 T/L |
| Brand | BR |
| Bush | 3030 |
| Grooves | 6 |
| Pitch Circle Diameter (Dp) | 450mm |
| Type | SPZ |
| Weight (KG) | 67 |
Schematic for SPZ 450 - 6 T/L, Taperlock V-Belt Pulley | |
| D | 454mm |
| F | 76mm |
| J | 421mm |
| L | 76mm |
| N | 146mm |
