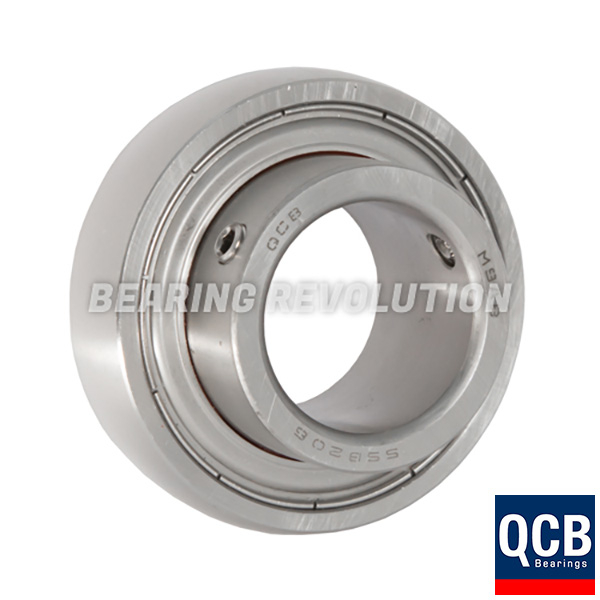

SSB 205-16, STAINLESS STEEL BEARING INSERT WITH A 1 INCH BORE - SELECT RANGE

Name: SSB 205-16, Stainless Steel Bearing Insert with a 1 inch bore - Select Range
Brand: Select
Price: 34.94 GBP
Availability: InStock

BR Stock No. S-SSB 205-16 | Brand: Select | Mfr. Part No. SSB 205 16

Flat Back Stainless Steel Bearing Insert filled with Food Grade Grease from our Select range. These can be used in both our Stainless Steel Units and Thermoplastic Housings. 1" ID, 52mm OD, 27mm width. Also known as

Also known as 1225 1 S/S 6

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£29.12 (£34.94 inc VAT)
5 - 9£27.67 (£33.20 inc VAT)
10 +£26.22 (£31.46 inc VAT)
Bulk Order PricesENQUIRE

SSB 205-16, Stainless Steel Bearing Insert with a 1 inch bore - Select Range Schematic

Specifications for SSB 205-16, Stainless Steel Bearing Insert with a 1 inch bore - Select Range
Reference	SSB 205 16
Brand	Select
Inside Diameter	1"
Outside Diameter	52mm
Width	27mm
Dyn	1100
Stat	710
Weight (KG)	0.16

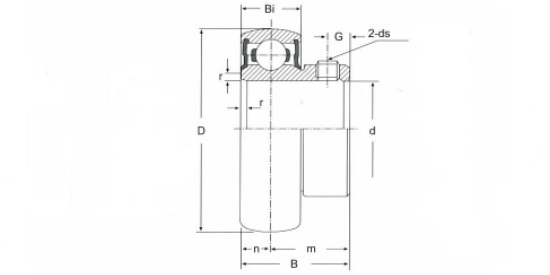

Schematic for SSB 205-16, Stainless Steel Bearing Insert with a 1 inch bore - Select Range
B	27mm
Bi	27mm
d	1"
D	52mm
ds	M6 x 0.75
G	5mm
KG	0.16
m	19.5mm
n	7.5mm
r (Min)	1.5mm
