SSUCP 204 SB - STAINLESS STEEL PILLOW BLOCK HOUSING WITH A 20MM BORE - SELECT RANGE

Name: SSUCP 204 SB - Stainless Steel Pillow Block Housing with a 20mm bore - Select Range
Brand: Select
Price: 78.37 GBP
Availability: InStock

BR Stock No. S-SSUCP 204 SB | Brand: Select | Mfr. Part No. SSUCP 204 SB

The 'Select' stainless steel range of housed bearing units consists of solid base housings in AISI 304 stainless steel matched with AISI 440 stainless steel inserts. Open and closed style end caps are also available to further prevent contaminant ingress.

Also known as SSUCP 204

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£65.31 (£78.37 inc VAT)
5 - 9£62.04 (£74.45 inc VAT)
10 +£58.78 (£70.54 inc VAT)
Bulk Order PricesENQUIRE

SSUCP 204 SB - Stainless Steel Pillow Block Housing with a 20mm bore - Select Range Schematic

Specifications for SSUCP 204 SB - Stainless Steel Pillow Block Housing with a 20mm bore - Select Range
Reference	SSUCP 204 SB
Brand	Select
Inside Diameter	20mm
Bolt	M10
Weight (KG)	0.65

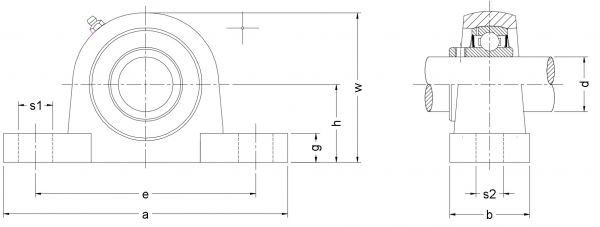

Schematic for SSUCP 204 SB - Stainless Steel Pillow Block Housing with a 20mm bore - Select Range
a	125.5mm
b	37mm
d	20mm
e	95mm
g	15mm
h	33.3mm
KG	0.65
S1	19mm
S2	13mm
w	64mm
