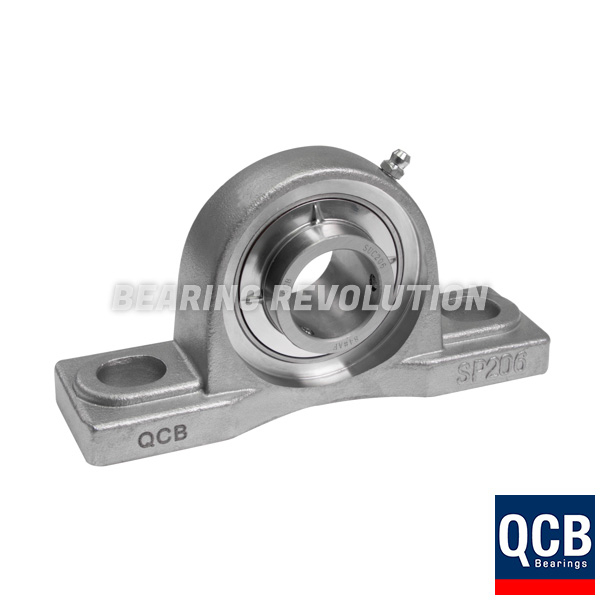

SSUCP 206 SB - STAINLESS STEEL PILLOW BLOCK HOUSING WITH A 30MM BORE - SELECT RANGE
The 'Select' stainless steel range of housed bearing units consists of solid base housings in AISI 304 stainless steel matched with AISI 440 stainless steel inserts. Open and closed style end caps are also available to further prevent contaminant ingress.
Also known as SSUCP 206
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£116.90 (£140.28 inc VAT)
- 5 - 9£111.06 (£133.27 inc VAT)
- 10 +£105.21 (£126.25 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SSUCP 206 SB - Stainless Steel Pillow Block Housing with a 30mm bore - Select Range | |
| Reference | SSUCP 206 SB |
| Brand | Select |
| Inside Diameter | 30mm |
| Bolt | M14 |
| Weight (KG) | 1.3 |

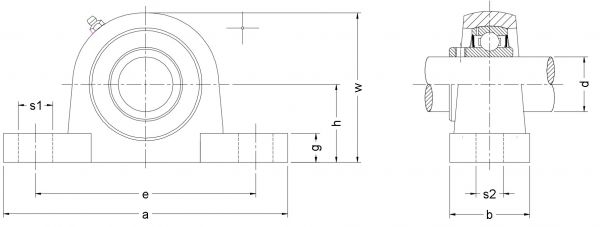

Schematic for SSUCP 206 SB - Stainless Steel Pillow Block Housing with a 30mm bore - Select Range | |
| a | 164mm |
| b | 47mm |
| d | 30mm |
| e | 121mm |
| g | 17mm |
| h | 42.9mm |
| S1 | 21mm |
| S2 | 17mm |
| w | 83mm |
