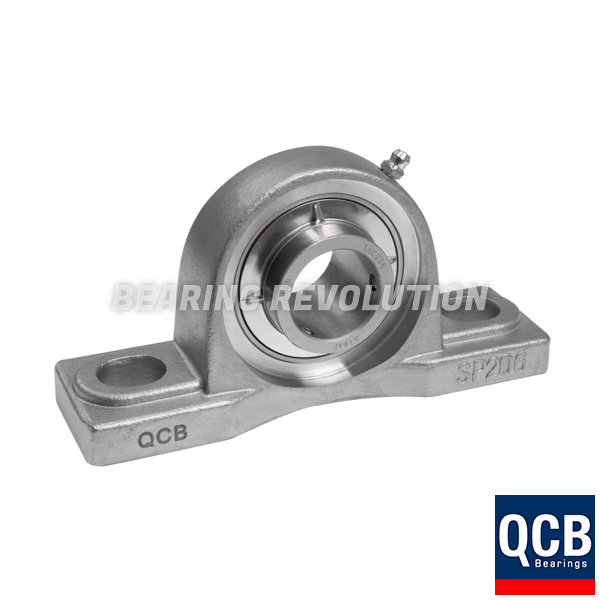

SSUCP 208 SB - STAINLESS STEEL PILLOW BLOCK HOUSING WITH A 40MM BORE - SELECT RANGE

Name: SSUCP 208 SB - Stainless Steel Pillow Block Housing with a 40mm bore - Select Range
Brand: Select
Price: 223.02 GBP
Availability: InStock

BR Stock No. S-SSUCP 208 SB | Brand: Select | Mfr. Part No. SSUCP 208 SB

The 'Select' stainless steel range of housed bearing units consists of solid base housings in AISI 304 stainless steel matched with AISI 440 stainless steel inserts. Open and closed style end caps are also available to further prevent contaminant ingress.

Also known as SSUCP 208

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£185.85 (£223.02 inc VAT)
5 - 9£176.56 (£211.87 inc VAT)
10 +£167.27 (£200.72 inc VAT)
Bulk Order PricesENQUIRE

SSUCP 208 SB - Stainless Steel Pillow Block Housing with a 40mm bore - Select Range Schematic

Specifications for SSUCP 208 SB - Stainless Steel Pillow Block Housing with a 40mm bore - Select Range
Reference	SSUCP 208 SB
Brand	Select
Inside Diameter	40mm
Bolt	M14
Weight (KG)	2

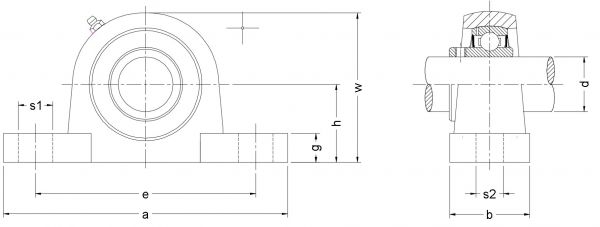

Schematic for SSUCP 208 SB - Stainless Steel Pillow Block Housing with a 40mm bore - Select Range
a	183mm
b	53.5mm
d	40mm
e	137mm
g	18mm
h	49.2mm
S1	21mm
S2	17mm
w	99.5mm
