Please note photos are for illustration purposes only

SSUCT 204 - STAINLESS STEEL TAKE UP UNIT WITH A 20MM BORE - SELECT RANGE

Name: SSUCT 204 - Stainless Steel Take Up Unit with a 20mm bore - Select Range
Brand: Select
Price: 80.33 GBP
Availability: InStock

BR Stock No. S-SSUCT 204 | Brand: Select | Mfr. Part No. SSUCT 204

The 'Select' stainless steel range of housed bearing units in AISI 304 stainless steel matched with AISI 440 stainless steel inserts. Open and closed style end caps are also available to further prevent contaminant ingress.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£66.94 (£80.33 inc VAT)
5 - 9£63.60 (£76.32 inc VAT)
10 +£60.25 (£72.30 inc VAT)
Bulk Order PricesENQUIRE

SSUCT 204 - Stainless Steel Take Up Unit with a 20mm bore - Select Range Schematic

Specifications for SSUCT 204 - Stainless Steel Take Up Unit with a 20mm bore - Select Range
Reference	SSUCT 204
Brand	Select
Inside Diameter	20mm
Weight (KG)	0.7

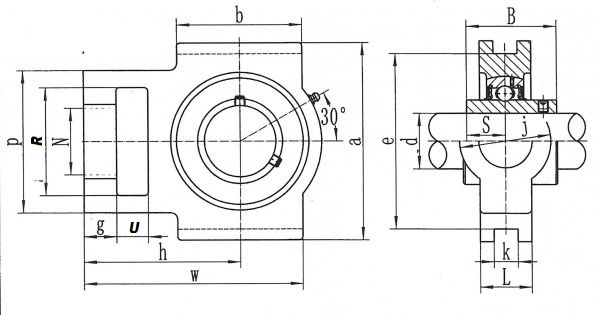

Schematic for SSUCT 204 - Stainless Steel Take Up Unit with a 20mm bore - Select Range
a	89mm
b	51mm
B	31mm
d	20mm
e	76mm
g	10mm
h	61mm
j	32mm
k	12mm
L	21mm
N	19mm
p	51mm
R	32mm
S	12.7mm
U	16mm
W	94mm
