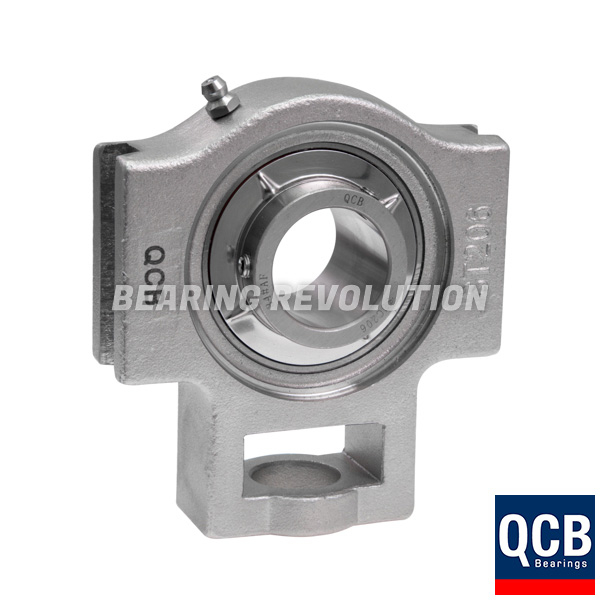

Please note photos are for illustration purposes only

SSUCT 209 - STAINLESS STEEL TAKE UP UNIT WITH A 45MM BORE - SELECT RANGE

Name: SSUCT 209 - Stainless Steel Take Up Unit with a 45mm bore - Select Range
Brand: Select
Price: 257.52 GBP
Availability: InStock

BR Stock No. S-SSUCT 209 | Brand: Select | Mfr. Part No. SSUCT 209

The 'Select' stainless steel range of housed bearing units in AISI 304 stainless steel matched with AISI 440 stainless steel inserts. Open and closed style end caps are also available to further prevent contaminant ingress.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£214.60 (£257.52 inc VAT)
5 - 9£203.86 (£244.63 inc VAT)
10 +£193.13 (£231.76 inc VAT)
Bulk Order PricesENQUIRE

SSUCT 209 - Stainless Steel Take Up Unit with a 45mm bore - Select Range Schematic

Specifications for SSUCT 209 - Stainless Steel Take Up Unit with a 45mm bore - Select Range
Reference	SSUCT 209
Brand	Select
Inside Diameter	45mm
Weight (KG)	2.33

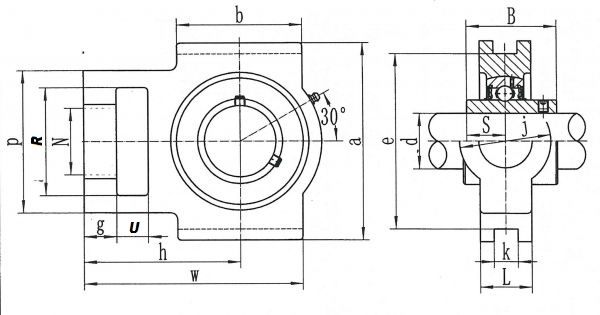

Schematic for SSUCT 209 - Stainless Steel Take Up Unit with a 45mm bore - Select Range
a	117mm
b	83mm
B	49.2mm
d	45mm
e	102mm
g	18mm
h	87mm
j	49mm
k	16mm
L	35mm
N	29mm
p	83mm
R	49mm
S	19mm
U	19mm
W	94mm
