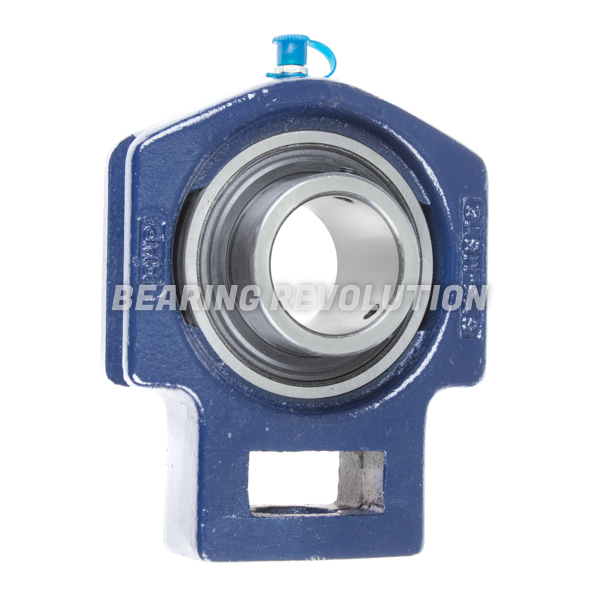

ST 1.3/16, 'PREMIUM' TAKE UP UNIT WITH A 1.3/16 INCH BORE.

Name: ST 1.3/16, 'Premium' Take Up Unit with a 1.3/16 inch bore.
Brand: Premium
Price: 106.37 GBP
Availability: InStock

BR Stock No. P-ST 1.3/16 | Brand: Premium | Mfr. Part No. ST 1.3/16

Cast Iron Take Up Unit complete with full width bearing insert from our Premium Range.

Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).

UnitsPer unit
1 - 4£88.64 (£106.37 inc VAT)
5 +£84.21 (£101.05 inc VAT)
Bulk Order PricesENQUIRE

ST 1.3/16, 'Premium' Take Up Unit with a 1.3/16 inch bore. Schematic

Specifications for ST 1.3/16, 'Premium' Take Up Unit with a 1.3/16 inch bore.
Reference	ST 1.3/16
Brand	Premium
Inside Diameter	1.3/16"
Weight (KG)	1.6

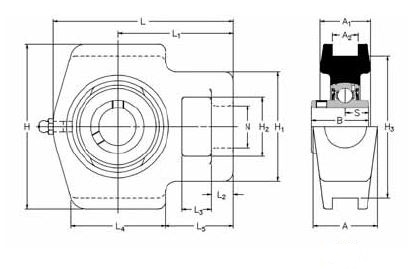

Schematic for ST 1.3/16, 'Premium' Take Up Unit with a 1.3/16 inch bore.
A	36.5mm
A1	30mm
A2	13.5mm
B	38.1mm
H	101.5mm
H1	64.5mm
H2	37.5mm
H3	89mm
KG	1.6
L	115.5mm
L1	71.7mm
L2	12.5mm
L3	16.5mm
L4	64.5mm
L5	43mm
N	22.5mm
s	15.93mm
