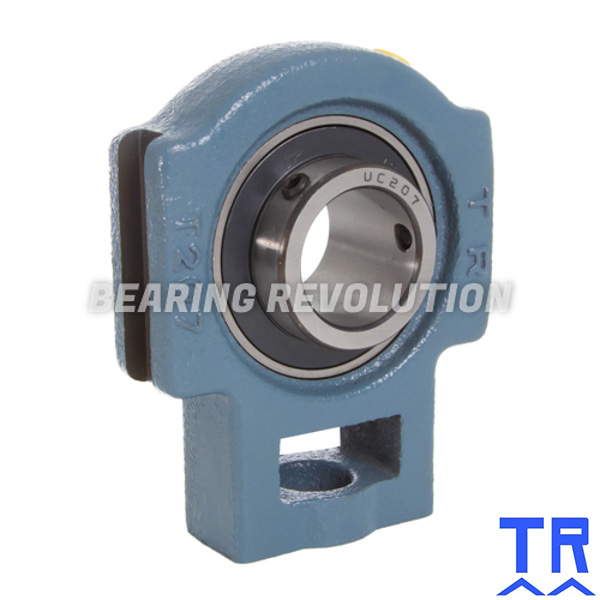

ST 1.3/4 ( UCST 209 28 ) - TAKE UP UNIT WITH A 1.3/4 INCH BORE - TR BRAND
Cast Iron Take Up Unit complete with full width bearing insert from our TR Range
- UnitsPer unit
- 1 - 4£70.58 (£84.70 inc VAT)
- 5 - 9£67.04 (£80.45 inc VAT)
- 10 +£63.53 (£76.24 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for ST 1.3/4 ( UCST 209 28 ) - Take Up Unit with a 1.3/4 inch bore - TR Brand | |
| Reference | ST 1.3/4 |
| Brand | TR |
| Inside Diameter | 1.3/4" |
| Weight (KG) | 2.33 |
Schematic for ST 1.3/4 ( UCST 209 28 ) - Take Up Unit with a 1.3/4 inch bore - TR Brand | |
| A | 49mm |
| A1 | 17.5mm |
| A2 | 35mm |
| B | 49.2mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| KG | 2.33 |
| L | 144mm |
| L1 | 87mm |
| L2 | 16mm |
| L3 | 83mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 19mm |
