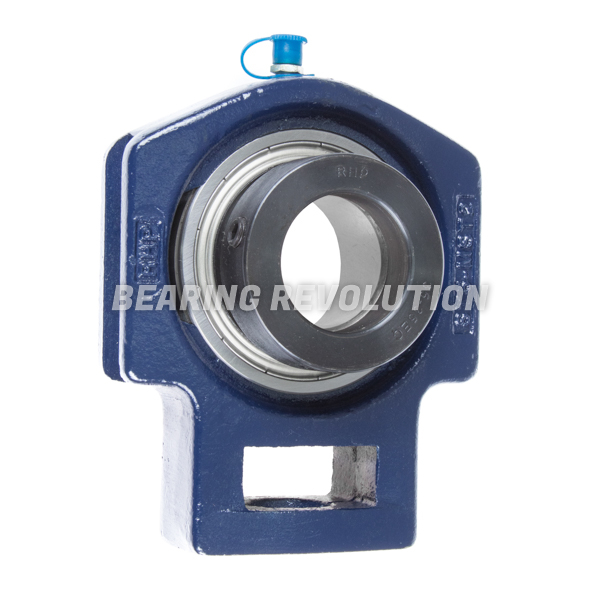

ST 25 EC, 'PREMIUM' TAKE UP UNIT WITH A 25MM BORE.
Cast Iron Take Up Unit complete with flat back bearing insert and eccentric collar lock from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£70.09 (£84.11 inc VAT)
- 5 +£66.59 (£79.91 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for ST 25 EC, 'Premium' Take Up Unit with a 25mm bore. | |
| Reference | ST 25 EC |
| Brand | Premium |
| Inside Diameter | 25mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 1 |

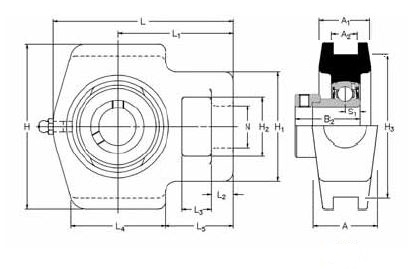

Schematic for ST 25 EC, 'Premium' Take Up Unit with a 25mm bore. | |
| A | 36mm |
| A1 | 27.5mm |
| A2 | 13.5mm |
| B2 | 31.03mm |
| H | 88.5mm |
| H1 | 58.5mm |
| H2 | 32mm |
| H3 | 76mm |
| KG | 1 |
| L | 98mm |
| L1 | 62mm |
| L2 | 11.5mm |
| L3 | 16mm |
| L4 | 50.5mm |
| L5 | 36.5mm |
| N | 22.5mm |
| s1 | 7.53mm |
