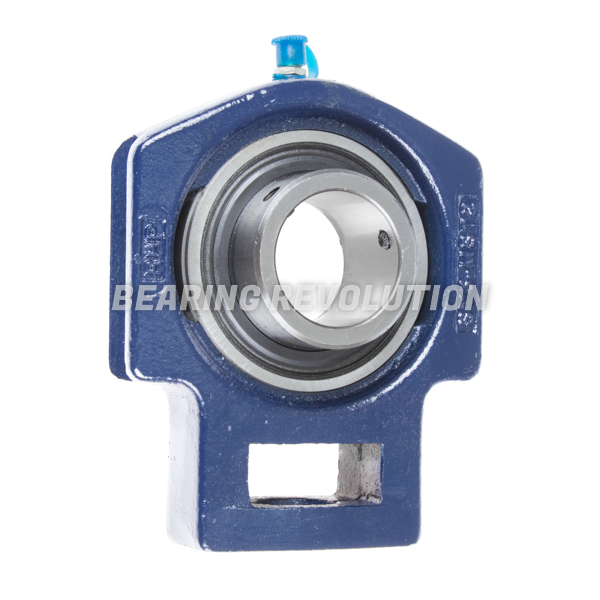

ST 30 A, 'PREMIUM' TAKE UP UNIT WITH A 30MM BORE.
Cast Iron Take Up Unit complete with flat back bearing insert from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£81.22 (£97.46 inc VAT)
- 5 +£77.16 (£92.59 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for ST 30 A, 'Premium' Take Up Unit with a 30mm bore. | |
| Reference | ST 30 A |
| Brand | Premium |
| Inside Diameter | 30mm |
| Weight (KG) | 1.6 |

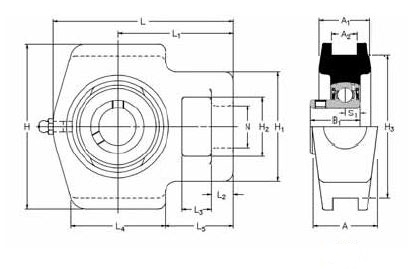

Schematic for ST 30 A, 'Premium' Take Up Unit with a 30mm bore. | |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B1 | 31.2mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| KG | 1.6 |
| L | 115.5mm |
| L1 | 71.7mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| N | 22.5mm |
| s1 | 9.03mm |
