ST 55 ( UCST 211 ) - TAKE UP UNIT WITH A 55MM BORE - TR BRAND
Cast Iron Take Up Unit complete with full width bearing insert from our TR Range
- UnitsPer unit
- 1 - 4£96.50 (£115.80 inc VAT)
- 5 - 9£91.67 (£110.00 inc VAT)
- 10 +£86.85 (£104.22 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for ST 55 ( UCST 211 ) - Take Up Unit with a 55mm bore - TR Brand | |
| Reference | ST 55 |
| Brand | TR |
| Inside Diameter | 55mm |
| Weight (KG) | 3.79 |

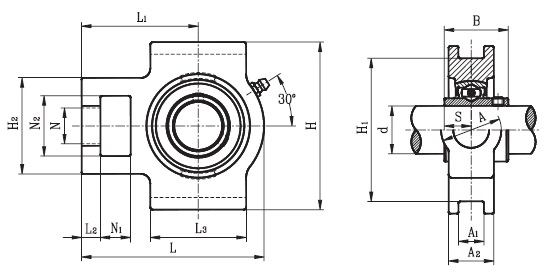

Schematic for ST 55 ( UCST 211 ) - Take Up Unit with a 55mm bore - TR Brand | |
| A | 64mm |
| A1 | 27mm |
| A2 | 38mm |
| B | 55.6mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| KG | 3.79 |
| L | 171mm |
| L1 | 106mm |
| L2 | 19mm |
| L3 | 95mm |
| N | 35mm |
| N1 | 25mm |
| N2 | 64mm |
| S | 22.2mm |
