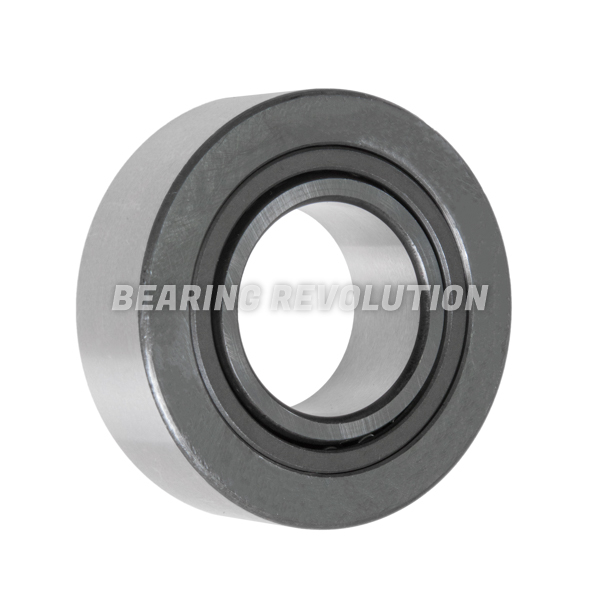

STO 20 X, YOKE TYPE SUPPORT ROLLER WITH A 20MM BORE - BUDGET RANGE
Yoke type support roller outer ring and needle roller cage assembly complete with inner ring, without axial guidance for the outer ring, cylindrical outer, from our Budget range. 20mm ID, 47mm OD, 16mm width.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£41.37 (£49.64 inc VAT)
- 5 - 9£39.31 (£47.17 inc VAT)
- 10 +£37.24 (£44.69 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for STO 20 X, Yoke Type Support Roller with a 20mm bore - Budget Range | |
| Reference | STO 20 X |
| Brand | Budget |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 16mm |
| Weight (KG) | 0.16 |

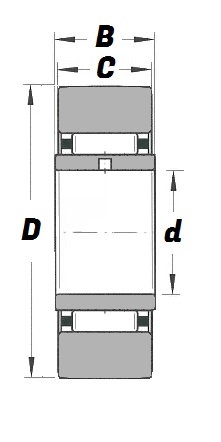

Schematic for STO 20 X, Yoke Type Support Roller with a 20mm bore - Budget Range | |
| B | 16mm |
| C | 15.8mm |
| d | 20mm |
| D | 47mm |
