SUC 201 8, STAINLESS STEEL BEARING INSERT WITH A .1/2 INCH BORE - SELECT RANGE

Name: SUC 201 8, Stainless Steel Bearing Insert with a .1/2 inch bore - Select Range
Brand: Select
Price: 35.34 GBP
Availability: InStock

BR Stock No. S-SUC 201 8 | Brand: Select | Mfr. Part No. SUC 201 8

Full width Stainless Steel Bearing Insert filled with Food Grade Grease from our Select range. These can be used in both our Stainless Steel Units and Thermoplastic Housings. .1/2" ID, 47mm OD, 31mm width. Also known as

Also known as 1020 .1/2 S/S 6

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£29.45 (£35.34 inc VAT)
5 - 9£27.98 (£33.58 inc VAT)
10 +£26.51 (£31.81 inc VAT)
Bulk Order PricesENQUIRE

SUC 201 8, Stainless Steel Bearing Insert with a .1/2 inch bore - Select Range Schematic

Specifications for SUC 201 8, Stainless Steel Bearing Insert with a .1/2 inch bore - Select Range
Reference	SUC 201 8
Brand	Select
Inside Diameter	.1/2"
Outside Diameter	47mm
Width	31mm
Dyn	1000
Stat	630
Weight (KG)	0.21

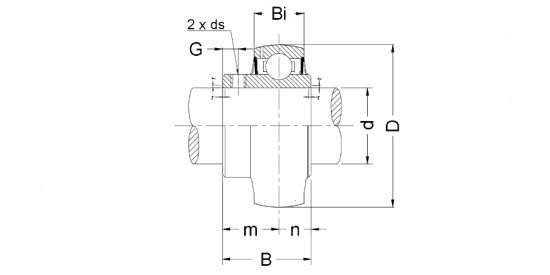

Schematic for SUC 201 8, Stainless Steel Bearing Insert with a .1/2 inch bore - Select Range
B	31mm
Bi	31mm
d	.1/2"
D	47mm
ds	M6 x 0.75
G	5mm
KG	0.21
m	18.3mm
n	12.7mm
r (Min)	1.5mm
