T 1060 2.1/4 ( UC 212 36 R3 ) - BEARING INSERT WITH A 2.1/4 INCH BORE - TR BRAND

BR Stock No. B-T 1060 2.1/4 | Brand: TR | Mfr. Part No. T 1060 2.1/4

Bearing Insert a triple lip seal fitted on both sides. ID 2.1/4", OD 110mm, width 27mm. This triple seal consists of a metal cap and synthetic rubber seal which are baked together to form a single seal. The Lip layers are of a triple construction so outside matters such as dust and water are shut out. These bearings can also be supplied complete with Housings in our Bearing Units section or can be available on request.

UnitsPer unit
1 - 4£44.66 (£53.59 inc VAT)
5 - 9£42.42 (£50.90 inc VAT)
10 +£40.20 (£48.24 inc VAT)
Bulk Order PricesENQUIRE

Specifications for T 1060 2.1/4 ( UC 212 36 R3 ) - Bearing Insert with a 2.1/4 inch bore - TR Brand
Reference	T 1060 2.1/4
Brand	TR
Inside Diameter	2.1/4"
Outside Diameter	110mm
Width	27mm
Dyn	47800
Stat	32800
Weight (KG)	1.54

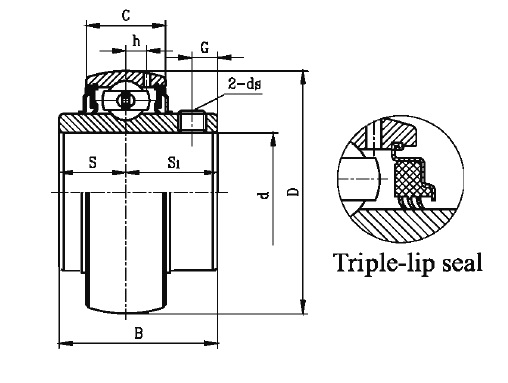

Schematic for T 1060 2.1/4 ( UC 212 36 R3 ) - Bearing Insert with a 2.1/4 inch bore - TR Brand
B	65.1mm
C	27mm
D	110mm
ds	M10x1.25
G	10.5mm
h	8.2mm
KG	1.54
S	25.4mm
S1	39.7mm
