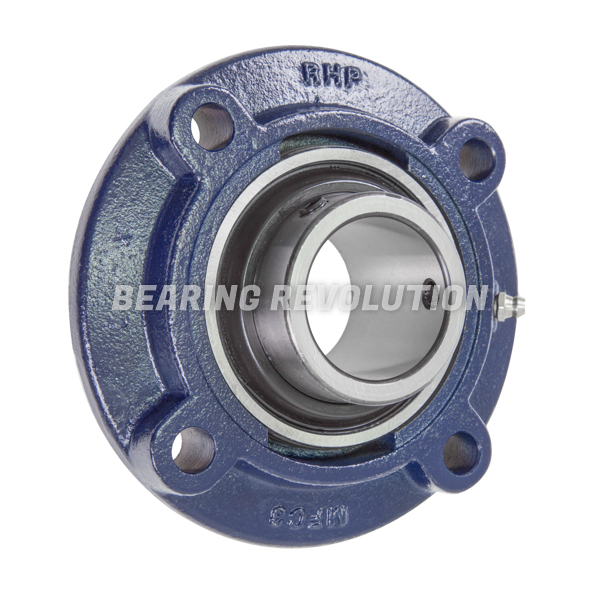

TMFC 45, TRIPLE SEALED ROUND FLANGE UNIT WITH A 45MM BORE - PREMIUM RANGE
Cast Iron Four Bolt Flange Cartridge Bearing Unit complete with tripled sealed full width bearing insert from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£206.31 (£247.57 inc VAT)
- 5 +£195.98 (£235.18 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TMFC 45, Triple Sealed Round Flange Unit with a 45mm bore - Premium Range | |
| Reference | TMFC 45 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 2.7 |

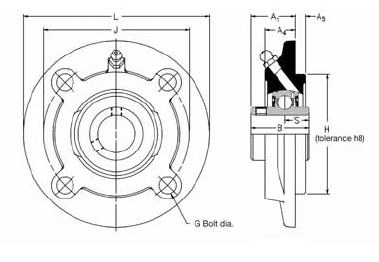

Schematic for TMFC 45, Triple Sealed Round Flange Unit with a 45mm bore - Premium Range | |
| A1 | 39.67mm |
| G | 10mm |
| H | 108mm |
| J | 130.2mm |
| KG | 2.7 |
| L | 155.6mm |
