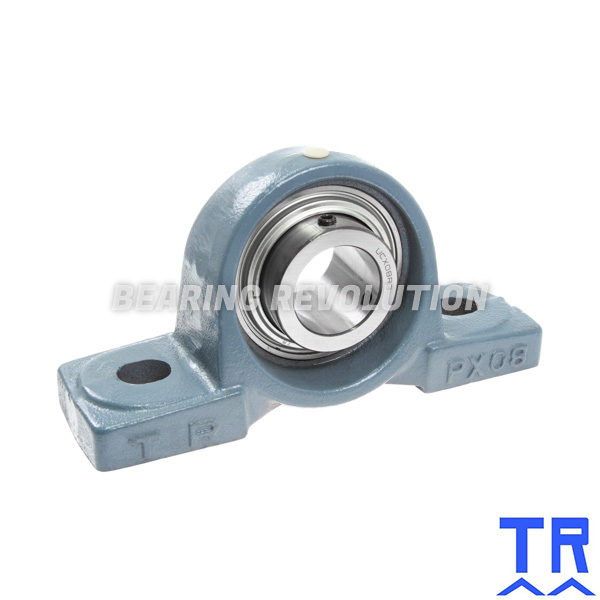

TMP 2 ( UCPX 10 32 R3 ) - TRIPLE SEALED PILLOW BLOCK HOUSING UNIT WITH A 2 INCH BORE - TR BRAND
Heavy Duty Cast Iron Pillow Block Housing Unit complete with full width triple sealed bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£129.38 (£155.26 inc VAT)
- 5 - 9£122.90 (£147.48 inc VAT)
- 10 +£116.45 (£139.74 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TMP 2 ( UCPX 10 32 R3 ) - Triple Sealed Pillow Block Housing Unit with a 2 inch bore - TR Brand | |
| Reference | TMP 2 |
| Brand | TR |
| Inside Diameter | 2" |
| Bolt | M16 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 4.12 |
Schematic for TMP 2 ( UCPX 10 32 R3 ) - Triple Sealed Pillow Block Housing Unit with a 2 inch bore - TR Brand | |
| A | 71mm |
| B | 55.6mm |
| H | 63.5mm |
| H0 | 126mm |
| H1 | 24mm |
| J | 171mm |
| KG | 4.12 |
| L | 240mm |
| N | 20mm |
| N1 | 23mm |
| S | 22.2mm |
