TNP 30 ( UCP 206 R3 ) - TRIPLE SEALED PILLOW BLOCK HOUSING UNIT WITH A 30MM BORE - TR BRAND

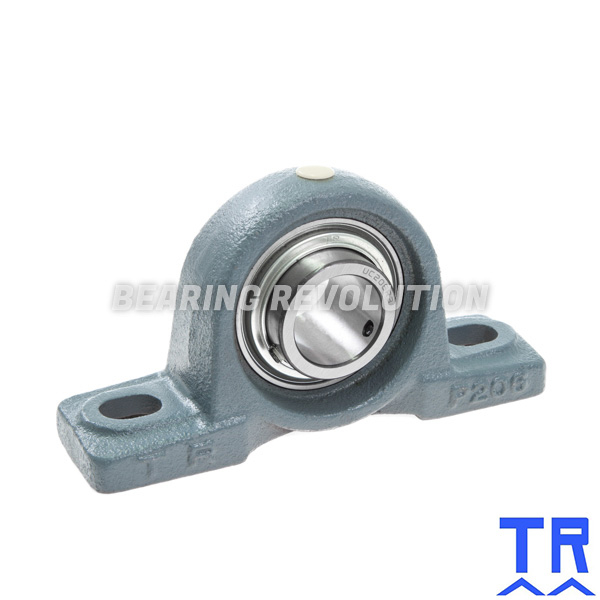

Cast Iron Two Bolt Pillow Block Housing Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£43.66 (£52.39 inc VAT)
- 5 - 9£41.48 (£49.78 inc VAT)
- 10 +£39.31 (£47.17 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TNP 30 ( UCP 206 R3 ) - Triple Sealed Pillow Block Housing Unit with a 30mm bore - TR Brand | |
| Reference | TNP 30 |
| Brand | TR |
| Inside Diameter | 30mm |
| Bolt | M12 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.22 |

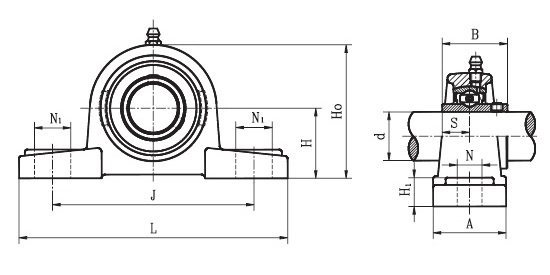

Schematic for TNP 30 ( UCP 206 R3 ) - Triple Sealed Pillow Block Housing Unit with a 30mm bore - TR Brand | |
| A | 44mm |
| B | 38.1mm |
| H | 42.9mm |
| H0 | 83mm |
| H1 | 16mm |
| J | 121mm |
| KG | 1.22 |
| L | 160mm |
| N | 14mm |
| N1 | 19mm |
| S | 15.9mm |
