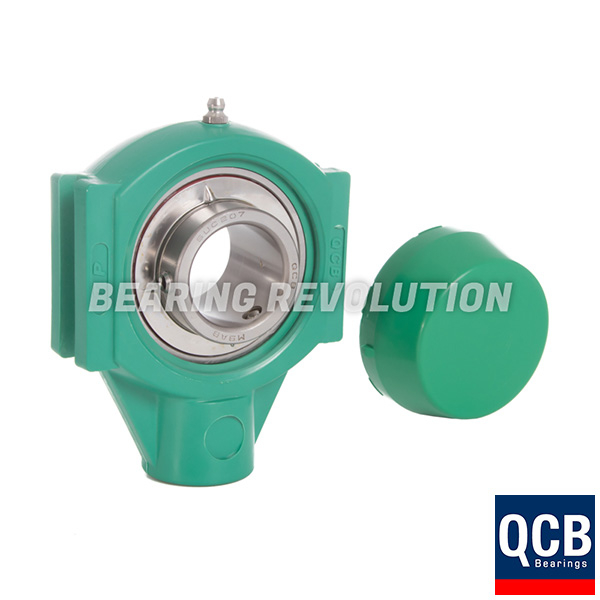

TPL 208 S/S N 6 GRN, GREEN THERMOPLASTIC TAKE UP HOUSING UNIT WITH A 40 BORE - SELECT RANGE

Name: TPL 208 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 40 bore - Select Range
Brand: Select
Price: 167.71 GBP
Availability: InStock

BR Stock No. S-TPL 208 S/S N 6 GRN | Brand: Select | Mfr. Part No. TPL 208 S/S N 6 GRN

Metric Green Thermoplastic Take Up Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£139.76 (£167.71 inc VAT)
5 - 9£132.77 (£159.32 inc VAT)
10 +£125.77 (£150.92 inc VAT)
Bulk Order PricesENQUIRE

TPL 208 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 40 bore - Select Range Schematic

Specifications for TPL 208 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 40 bore - Select Range
Reference	TPL 208 S/S N 6 GRN
Brand	Select
Inside Diameter	40mm
Weight (KG)	1.02

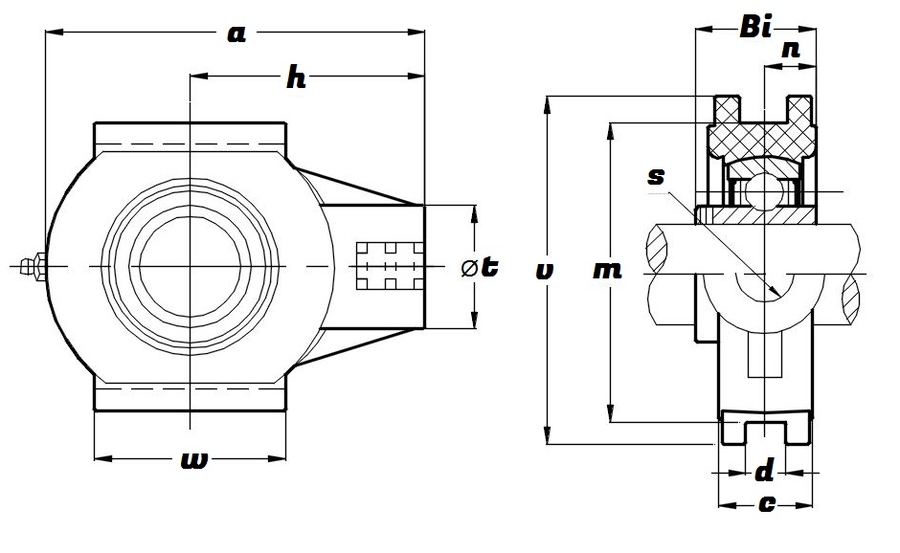

Schematic for TPL 208 S/S N 6 GRN, Green Thermoplastic Take Up Housing Unit with a 40 bore - Select Range
a	140mm
Bi	49.2mm
c	34.5mm
D	16mm
h	85mm
KG	1.02
m	102mm
n	19mm
s	M16
t	40mm
v	114mm
w	80mm
