TSF 25 ( UCF 205 R3 ) - TRIPLE SEALED SQUARE FLANGED UNIT WITH A 25MM BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£37.17 (£44.60 inc VAT)
- 5 - 9£35.32 (£42.38 inc VAT)
- 10 +£33.46 (£40.15 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSF 25 ( UCF 205 R3 ) - Triple Sealed Square Flanged Unit with a 25mm bore - TR Brand | |
| Reference | TSF 25 |
| Brand | TR |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 0.78 |

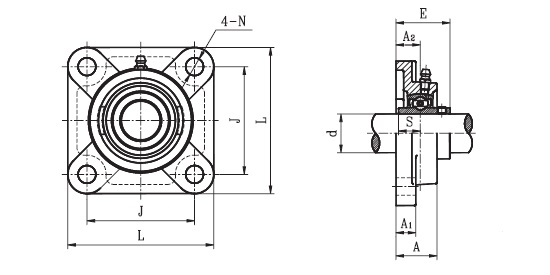

Schematic for TSF 25 ( UCF 205 R3 ) - Triple Sealed Square Flanged Unit with a 25mm bore - TR Brand | |
| A | 27mm |
| A1 | 13mm |
| A2 | 16mm |
| A4 | 40mm |
| E | 35.7mm |
| J | 70mm |
| KG | 0.78 |
| L | 95mm |
| N | 11.5mm |
| S | 14.3mm |
