TSF 30 ( UCF 206 R3 ) - TRIPLE SEALED SQUARE FLANGED UNIT WITH A 30MM BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£43.66 (£52.39 inc VAT)
- 5 - 9£41.48 (£49.78 inc VAT)
- 10 +£39.31 (£47.17 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSF 30 ( UCF 206 R3 ) - Triple Sealed Square Flanged Unit with a 30mm bore - TR Brand | |
| Reference | TSF 30 |
| Brand | TR |
| Inside Diameter | 30mm |
| Bolt | M10 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.12 |

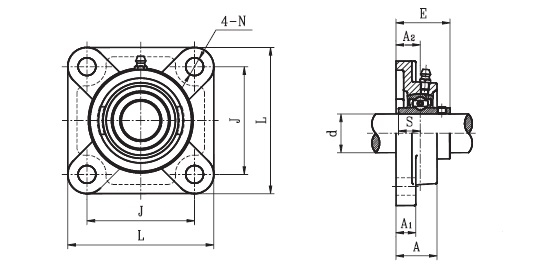

Schematic for TSF 30 ( UCF 206 R3 ) - Triple Sealed Square Flanged Unit with a 30mm bore - TR Brand | |
| A | 31mm |
| A1 | 13mm |
| A2 | 18mm |
| A4 | 44mm |
| E | 40.2mm |
| J | 83mm |
| KG | 1.12 |
| L | 108mm |
| N | 11.5mm |
| S | 15.9mm |
