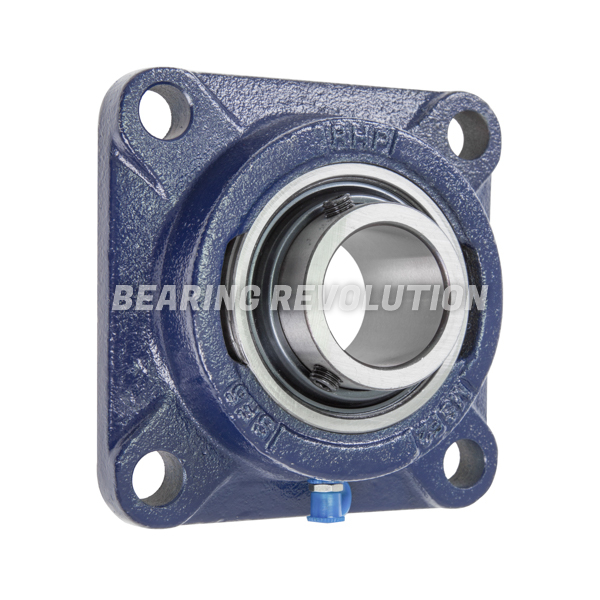

TSF 30, TRIPLE SEALED SQUARE FLANGED UNIT WITH A 30MM BORE - PREMIUM RANGE
Cast Iron Four Bolt Square Flanged Unit complete with tripled sealed full width bearing insert from our Premium Range. Also known as UCF 206 R3.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£82.97 (£99.56 inc VAT)
- 5 +£78.82 (£94.58 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSF 30, Triple Sealed Square Flanged Unit with a 30mm bore - Premium Range | |
| Reference | TSF 30 |
| Brand | Premium |
| Inside Diameter | 30mm |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.3 |

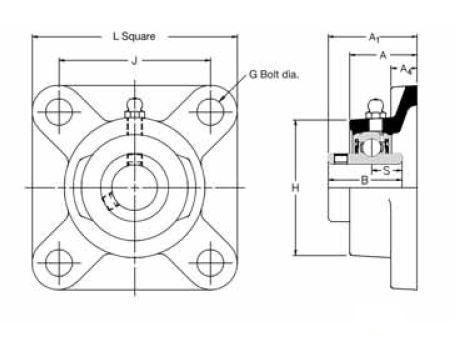

Schematic for TSF 30, Triple Sealed Square Flanged Unit with a 30mm bore - Premium Range | |
| A | 29.8mm |
| G | 10mm |
| J | 82.5mm |
| KG | 1.3 |
| L | 108mm |
