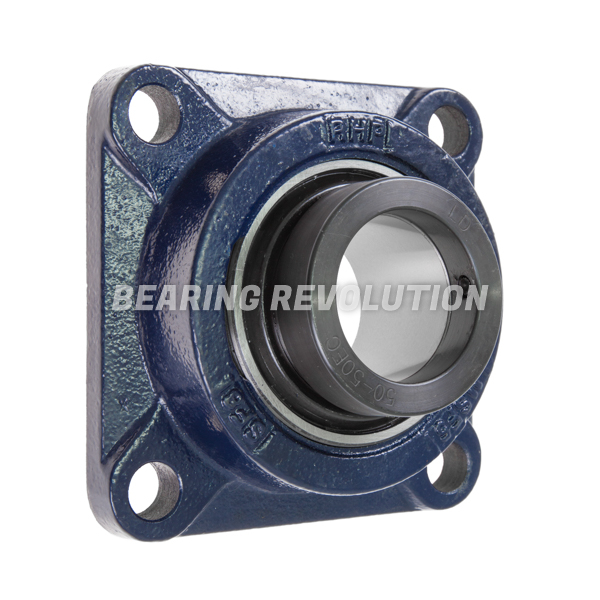

TSF 35, TRIPLE SEALED SQUARE FLANGED UNIT WITH A 40MM BORE - PREMIUM RANGE
Cast Iron Four Bolt Square Flanged Unit complete with tripled sealed full width bearing insert from our Premium Range. Also known as NAF 208 R3.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£132.48 (£158.98 inc VAT)
- 5 +£125.86 (£151.03 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSF 35, Triple Sealed Square Flanged Unit with a 40mm bore - Premium Range | |
| Reference | TSF 40 DEC |
| Brand | Premium |
| Inside Diameter | 40mm |
| Seals / Shields | Triple Sealed |
| Type | Eccentric Collar Lock |
| Weight (KG) | 2.2 |

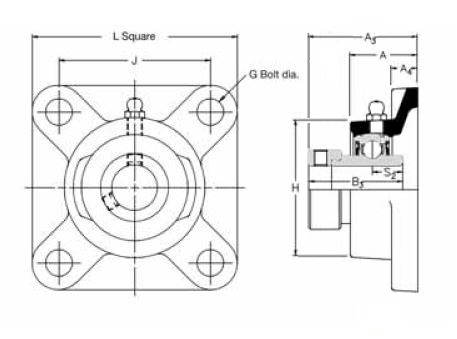

Schematic for TSF 35, Triple Sealed Square Flanged Unit with a 40mm bore - Premium Range | |
| A | 34.9mm |
| G | 12mm |
| J | 101.5mm |
| KG | 2.2 |
| L | 130.2mm |
