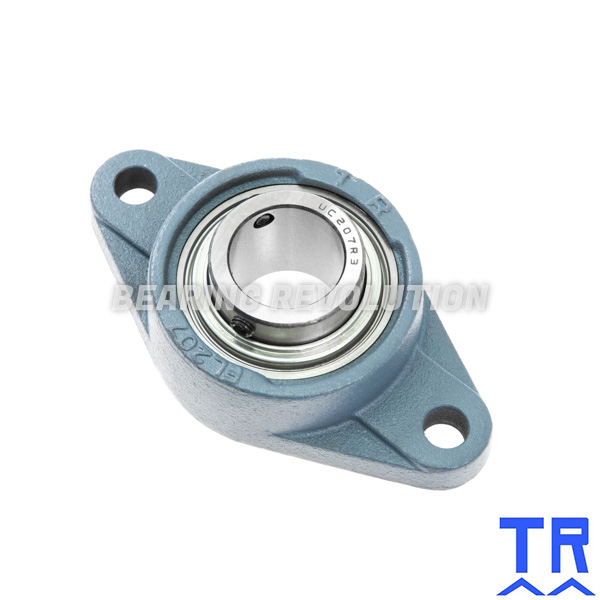

TSFT 1.1/4 ( UCFL 207 20 R3 ) - TRIPLE SEALED OVAL FLANGE UNIT WITH A 1.1/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Oval Flange Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£55.41 (£66.49 inc VAT)
- 5 - 9£52.64 (£63.17 inc VAT)
- 10 +£49.86 (£59.83 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSFT 1.1/4 ( UCFL 207 20 R3 ) - Triple Sealed Oval Flange Unit with a 1.1/4 inch bore - TR Brand | |
| Reference | TSFT 1.1/4 |
| Brand | TR |
| Inside Diameter | 1.1/4" |
| Bolt | M12 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.21 |
Schematic for TSFT 1.1/4 ( UCFL 207 20 R3 ) - Triple Sealed Oval Flange Unit with a 1.1/4 inch bore - TR Brand | |
| A | 34mm |
| A1 | 14mm |
| A2 | 19mm |
| A4 | 48.5mm |
| E | 44.4mm |
| H | 161mm |
| J | 130mm |
| KG | 1.21 |
| L | 90mm |
| N | 14mm |
| S | 17.5mm |
