TSFT 55 ( UCFL 211 R3 ) - TRIPLE SEALED OVAL FLANGE UNIT WITH A 55MM BORE - TR BRAND

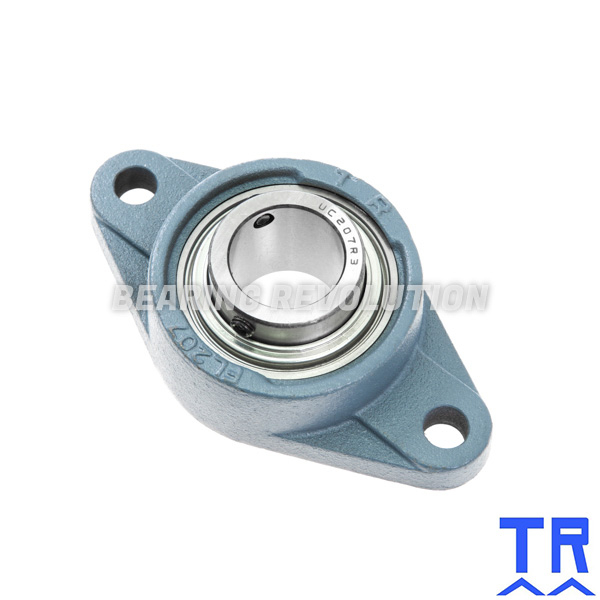

Cast Iron Two Bolt Oval Flange Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£92.98 (£111.58 inc VAT)
- 5 - 9£88.32 (£105.98 inc VAT)
- 10 +£83.69 (£100.43 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSFT 55 ( UCFL 211 R3 ) - Triple Sealed Oval Flange Unit with a 55mm bore - TR Brand | |
| Reference | TSFT 55 |
| Brand | TR |
| Inside Diameter | 55mm |
| Bolt | M16 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 2.89 |
Schematic for TSFT 55 ( UCFL 211 R3 ) - Triple Sealed Oval Flange Unit with a 55mm bore - TR Brand | |
| A | 43mm |
| A1 | 18mm |
| A2 | 25mm |
| A4 | 64mm |
| E | 58.4mm |
| H | 224mm |
| J | 184mm |
| KG | 2.89 |
| L | 130mm |
| N | 18mm |
| S | 22.2mm |
