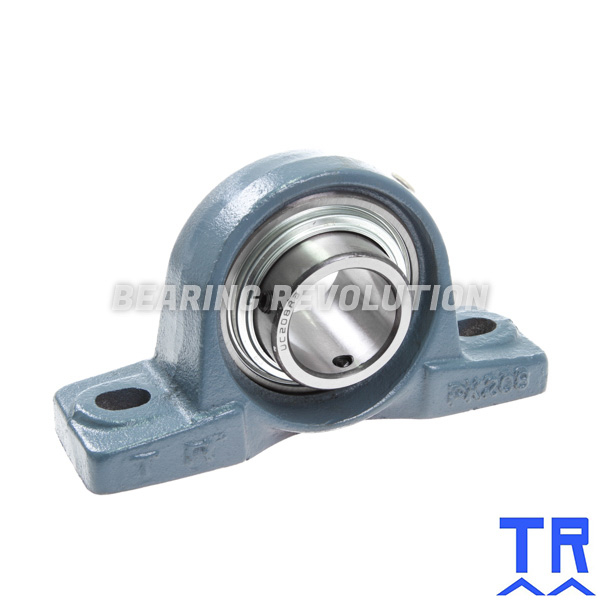

TSL 1.1/4 ( UCPK 207 20 R3 ) - TRIPLE SEALED PILLOW BLOCK HOUSING UNIT WITH A 1.1/4 INCH BORE - TR BRAND
Cast Iron Pillow Block Housing Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£55.41 (£66.49 inc VAT)
- 5 - 9£52.64 (£63.17 inc VAT)
- 10 +£49.86 (£59.83 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSL 1.1/4 ( UCPK 207 20 R3 ) - Triple Sealed Pillow Block Housing Unit with a 1.1/4 inch bore - TR Brand | |
| Reference | TSL 1.1/4 |
| Brand | TR |
| Inside Diameter | 1.1/4" |
| Bolt | M12 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.26 |
Schematic for TSL 1.1/4 ( UCPK 207 20 R3 ) - Triple Sealed Pillow Block Housing Unit with a 1.1/4 inch bore - TR Brand | |
| A | 44mm |
| B | 38.1mm |
| H | 39.7mm |
| H0 | 79mm |
| H1 | 17mm |
| J | 121mm |
| KG | 1.26 |
| L | 160mm |
| N | 14mm |
| N1 | 19mm |
| S | 15.9mm |
