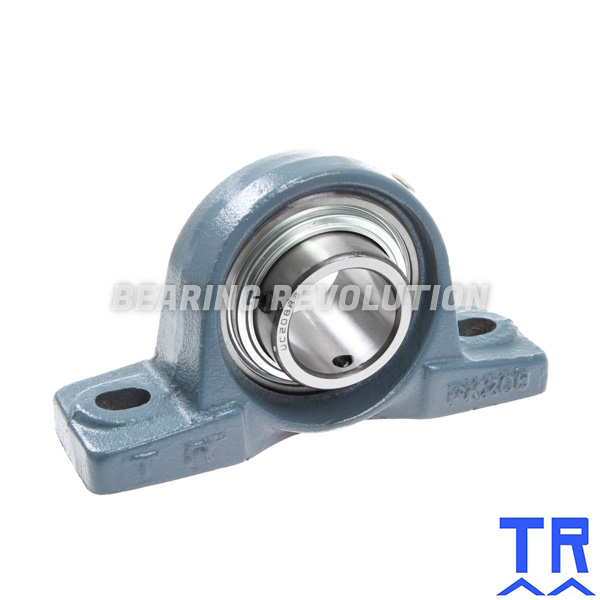

TSL 40 ( UCPK 208 R3 ) - TRIPLE SEALED PILLOW BLOCK HOUSING UNIT WITH A 40MM BORE - TR BRAND
Cast Iron Pillow Block Housing Unit complete with full width triple sealed bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£57.63 (£69.16 inc VAT)
- 5 - 9£54.74 (£65.69 inc VAT)
- 10 +£51.87 (£62.24 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSL 40 ( UCPK 208 R3 ) - Triple Sealed Pillow Block Housing Unit with a 40mm bore - TR Brand | |
| Reference | TSL 40 |
| Brand | TR |
| Inside Diameter | 40mm |
| Bolt | M12 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 2.21 |

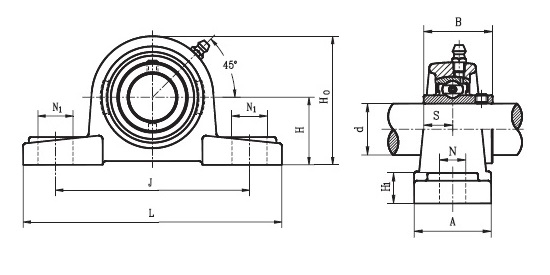

Schematic for TSL 40 ( UCPK 208 R3 ) - Triple Sealed Pillow Block Housing Unit with a 40mm bore - TR Brand | |
| A | 52mm |
| B | 49.2mm |
| H | 49.2mm |
| H0 | 98mm |
| H1 | 19mm |
| J | 140mm |
| KG | 2.21 |
| L | 181mm |
| N | 14mm |
| N1 | 19mm |
| S | 19mm |
