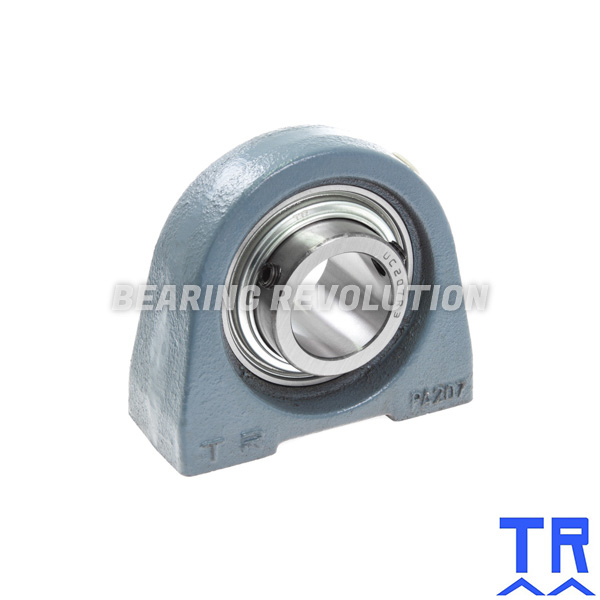

TSNP 35 ( UCPA 207 A R3 ) - TRIPLE SEALED TAPPED BASE PILLOW BLOCK WITH A 35MM BORE - TR BRAND
Cast Iron Tapped Base Pillow Block complete with full width triple sealed bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£58.91 (£70.69 inc VAT)
- 5 - 9£55.97 (£67.16 inc VAT)
- 10 +£53.01 (£63.61 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSNP 35 ( UCPA 207 A R3 ) - Triple Sealed Tapped Base Pillow Block with a 35mm bore - TR Brand | |
| Reference | TSNP 35 |
| Brand | TR |
| Inside Diameter | 35mm |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.64 |

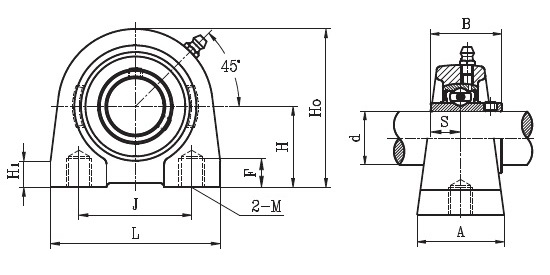

Schematic for TSNP 35 ( UCPA 207 A R3 ) - Triple Sealed Tapped Base Pillow Block with a 35mm bore - TR Brand | |
| A | 47.6mm |
| B | 42.9mm |
| F | 19mm |
| H | 47.6mm |
| H0 | 95.2mm |
| H1 | 16mm |
| J | 82.5mm |
| KG | 1.64 |
| L | 108mm |
| M | M10 |
| S | 17.5mm |
