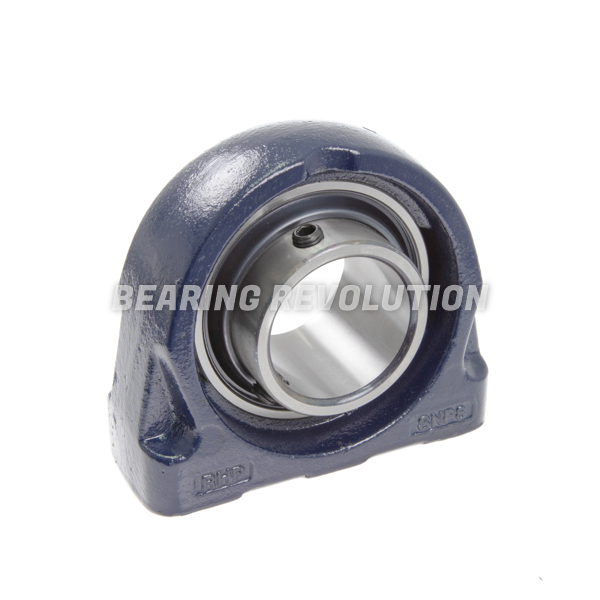

TSNP 50, TRIPLE SEALED TAPPED BASE PILLOW BLOCK WITH A 50MM BORE - PREMIUM RANGE
Cast Iron Tapped Base Pillow Block complete with tripled sealed full width bearing insert from our Premium Range. Also known as UCPA 210 A R3.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£162.40 (£194.88 inc VAT)
- 5 +£154.28 (£185.14 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TSNP 50, Triple Sealed Tapped Base Pillow Block with a 50mm bore - Premium Range | |
| Reference | TSNP 50 |
| Brand | Premium |
| Inside Diameter | 50mm |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 3.3 |

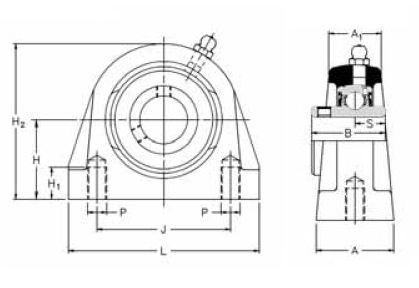

Schematic for TSNP 50, Triple Sealed Tapped Base Pillow Block with a 50mm bore - Premium Range | |
| A | 54mm |
| H | 57.2mm |
| H2 | 115mm |
| J | 101.6mm |
| KG | 3.3 |
| L | 135mm |
