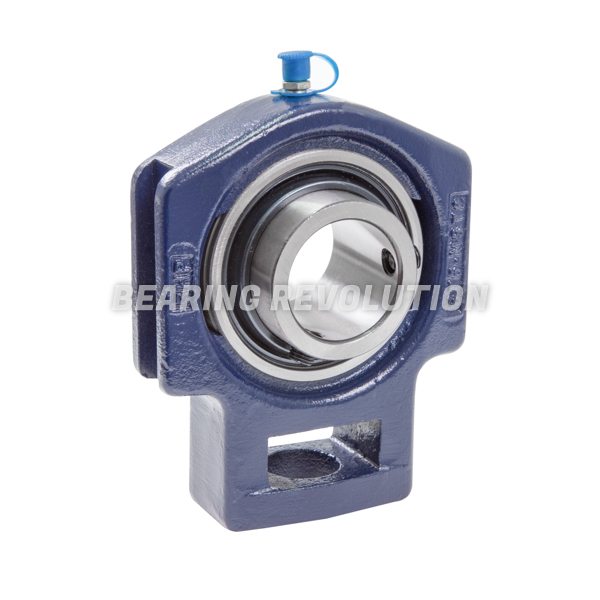

TST 35, TRIPLE SEALED TAKE UP UNIT WITH A 35MM BORE - PREMIUM RANGE
Cast Iron Take Up Unit complete with tripled sealed full width bearing insert from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£111.97 (£134.36 inc VAT)
- 5 +£106.37 (£127.64 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for TST 35, Triple Sealed Take Up Unit with a 35mm bore - Premium Range | |
| Reference | TST 35 |
| Brand | Premium |
| Inside Diameter | 35mm |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 1.6 |

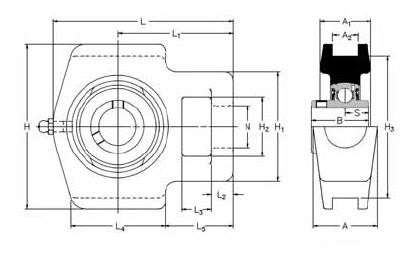

Schematic for TST 35, Triple Sealed Take Up Unit with a 35mm bore - Premium Range | |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B | 42.9mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| KG | 1.6 |
| L | 124mm |
| L1 | 75.5mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| N | 22.5mm |
| s | 17.53mm |
