UC 208 25 R3

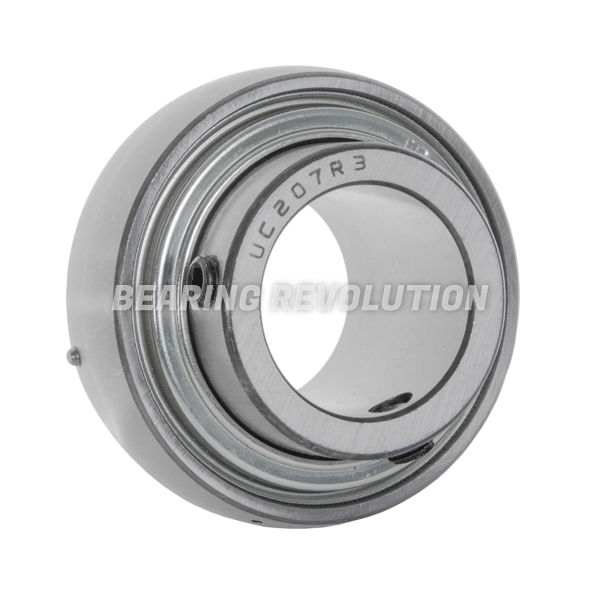

BEARING INSERT WITH A 1.9/16 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 1.9/16", OD 80mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as T 1040 1.9/16, T10401.9/16, UC20825R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£24.20 (£29.04 inc VAT)
- 5 - 9£23.00 (£27.60 inc VAT)
- 10 +£21.79 (£26.15 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UC 208 25 R3 | |
| Reference | T 1040 1.9/16 |
| Brand | Budget |
| Inside Diameter | 1.9/16" |
| Outside Diameter | 80mm |
| Dyn | 29600 |
| Seals / Shields | Triple Sealed |
| Stat | 18200 |
| Weight (KG) | 0.65 |

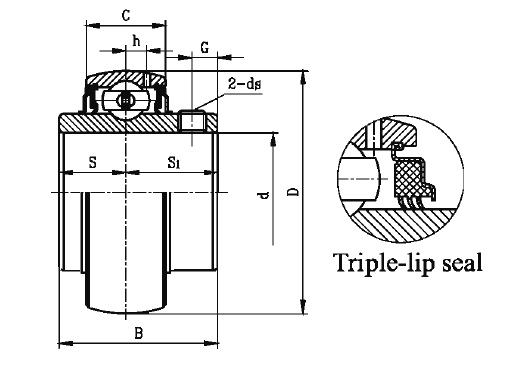

Schematic for UC 208 25 R3 | |
| B | 49.2mm |
| C | 21mm |
| d | 1.9/16" |
| D | 80mm |
| ds | M8x1 |
| G | 8mm |
| h | 6.3mm |
| KG | 0.65 |
| S | 19mm |
| s1 | 30.2mm |
