UC 213 40 R3
BEARING INSERT WITH A 2.1/2 INCH BORE - TR BRAND
Full Width 'UC type' Bearing Insert complete with grub screws to allow tightening against the shaft, from our TR Range. ID 2.1/2", OD 120mm, width . These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as T 1065 2.1/2, T10652.1/2, UC21340R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£81.73 (£98.08 inc VAT)
- 5 - 9£77.65 (£93.18 inc VAT)
- 10 +£73.55 (£88.26 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UC 213 40 R3 | |
| Reference | T 1065 2.1/2 |
| Brand | Budget |
| Inside Diameter | 2.1/2" |
| Outside Diameter | 120mm |
| Dyn | 57200 |
| Seals / Shields | Triple Sealed |
| Stat | 40000 |
| Weight (KG) | 1.84 |

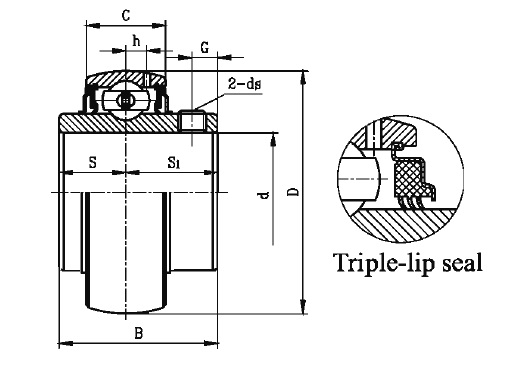

Schematic for UC 213 40 R3 | |
| B | 65.1mm |
| C | 28mm |
| d | 2.1/2" |
| D | 120mm |
| ds | M12x1.25 |
| G | 12mm |
| h | 8mm |
| KG | 1.84 |
| S | 25.4mm |
| S1 | 39.7mm |
