UCF 204 12 SM
SQUARE FLANGED UNIT WITH A .3/4 INCH BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert and end cap from our TR Range.
Also known as SF .3/4 + END CAP, SF.3/4+ENDCAP, UCF20412SM
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£70.35 (£84.42 inc VAT)
- 5 - 9£66.83 (£80.20 inc VAT)
- 10 +£63.32 (£75.98 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 204 12 SM | |
| Reference | SF .3/4 + END CAP |
| Brand | Budget |
| Inside Diameter | .3/4" |
| Bolt | M10 |
| Weight (KG) | 0.59 |

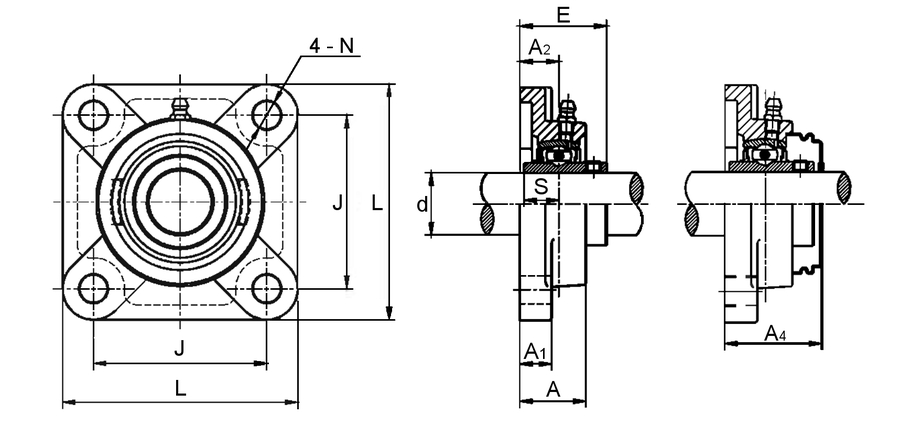

Schematic for UCF 204 12 SM | |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 15mm |
| A4 | 37.5mm |
| E | 33.3mm |
| J | 64mm |
| KG | 0.59 |
| L | 86mm |
| N | 11.5mm |
| S | 12.7mm |
