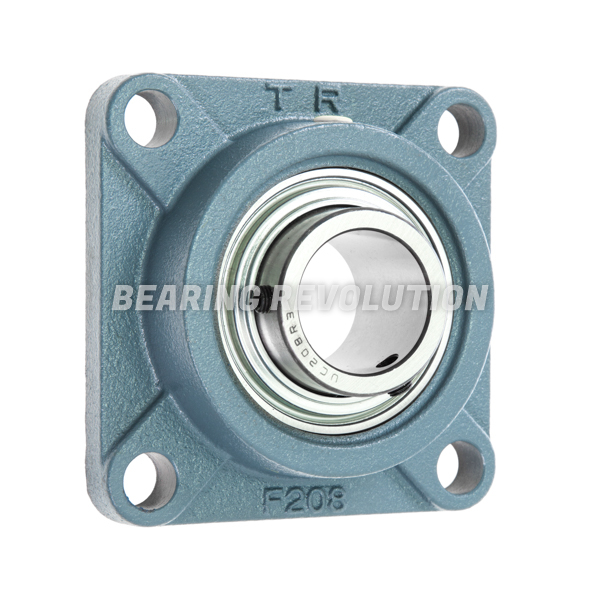

UCF 205-16 R3
SQUARE FLANGED UNIT WITH A 1 INCH BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with triple sealed full width bearing insert from our TR Range.
Also known as TSF 1, TSF1, UCF205-16R3
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£60.80 (£72.96 inc VAT)
- 5 - 9£57.75 (£69.30 inc VAT)
- 10 +£54.72 (£65.66 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 205-16 R3 | |
| Reference | TSF 1 |
| Brand | Budget |
| Inside Diameter | 1" |
| Bolt | M10 |
| Seals / Shields | Triple Sealed |
| Weight (KG) | 0.78 |

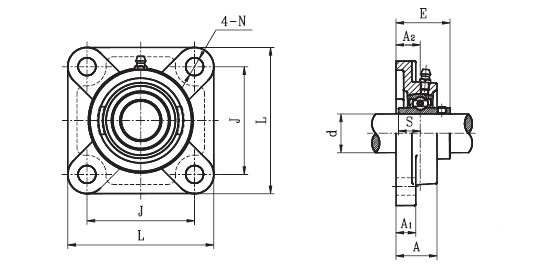

Schematic for UCF 205-16 R3 | |
| A | 27mm |
| A1 | 13mm |
| A2 | 16mm |
| E | 35.7mm |
| J | 70mm |
| KG | 0.78 |
| L | 95mm |
| N | 11.5mm |
| S | 14.3mm |
