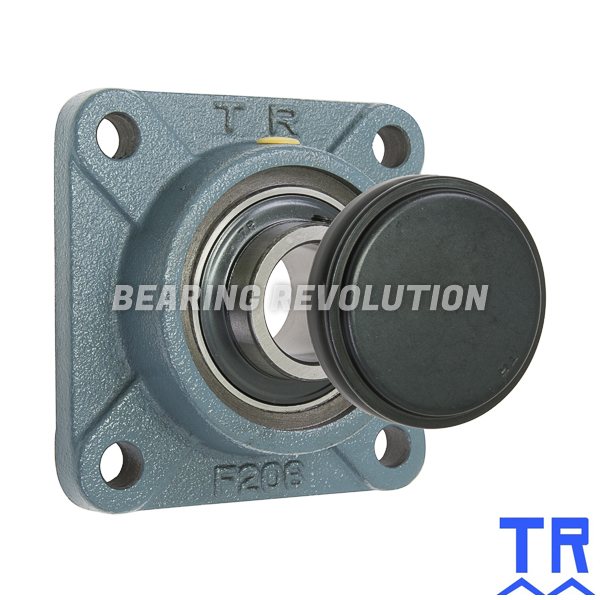

UCF 206 SM
SQUARE FLANGED UNIT WITH A 30MM BORE - TR BRAND
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert and end cap from our TR Range.
Also known as SF 30 + END CAP, SF30+ENDCAP, UCF206SM
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£91.77 (£110.12 inc VAT)
- 5 - 9£87.19 (£104.63 inc VAT)
- 10 +£82.58 (£99.10 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCF 206 SM | |
| Reference | SF 30 + END CAP |
| Brand | Budget |
| Inside Diameter | 30mm |
| Bolt | M10 |
| Weight (KG) | 1.12 |

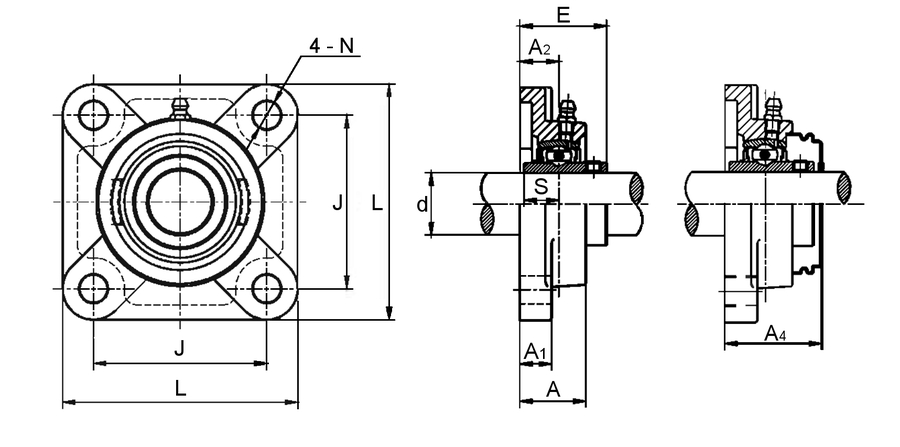

Schematic for UCF 206 SM | |
| A | 31mm |
| A1 | 13mm |
| A2 | 18mm |
| A4 | 44mm |
| E | 40.2mm |
| J | 83mm |
| KG | 1.12 |
| L | 108mm |
| N | 11.5mm |
| S | 15.9mm |
